Kabel Lighting DMX Kabel Sommer Somer SC Isopod F22 Grey 100meter

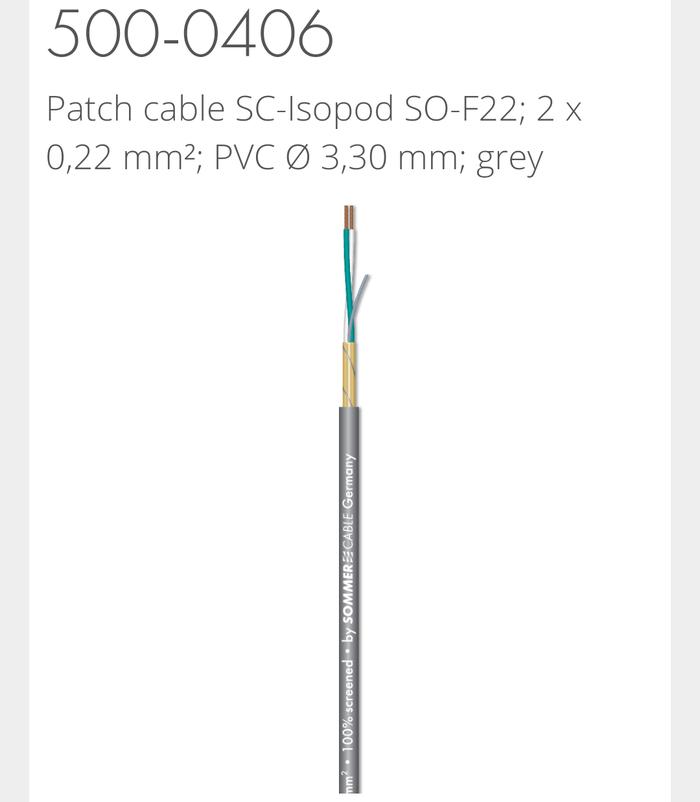

Name SC-Isopod SO-F22 Grey Properties OFC oxygen free copper Properties Analog Properties Digital 110 AES / EBU Application area Installation Application Patch cable Colour grey Colour detailed grey Signal transmission symmetrical Construction (2LI2Y0,22mm)(ST)Y Jacket material PVC Jacket [mm] 3,30 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) [mm] 0,22 Inner conductor (audio) [mm] 0,53 AWG (audio) 24 Shielding AL / PT foil + AL / PT foil + filler strand, tin-plated Copper strands (audio) 7 Copper strand (audio) [mm] 0,20 Conductor insulation material PP Conductor insulation [mm] 1,30 Weight per 1 m [g] 16 Fire load per m [kWh] 0,05 Style variant round Shielding factor [%] 100 Packing 200 m spool Temperature min. [C] -25 Temperature max. [C] 70 Width [mm] 3,3 Height [mm] 3,3 Capac. cond./cond. per 1 m (audio) [pF] 74 Capacity wire/wire at 1 ft. (audio) [pF] 22,5552 Capac. cond./shield. per 1 m (audio) [pF] 143 Capacity wire/electic screen at 1 ft. (audio) [pF] 43,5864 Impedance [] 110 Surge impedance (audio) [] 110 Insulation resist. per 1 km [G] 0,2 Insulation resist. per 1000 feet [G] 0,061 Insulation resist. per 1 km (audio) [G] 0,2 Insulation resist. per 1000 feet (audio) [G] 0,061 Conductor resistance per 1 km [] 88 Conductor resistance per 1000 ft. [] 26,8224 Shield. resistance per 1 km [] 75 Shield. resistance per 1000 ft. [] 22,86 EAN 4049371005432 Fca
