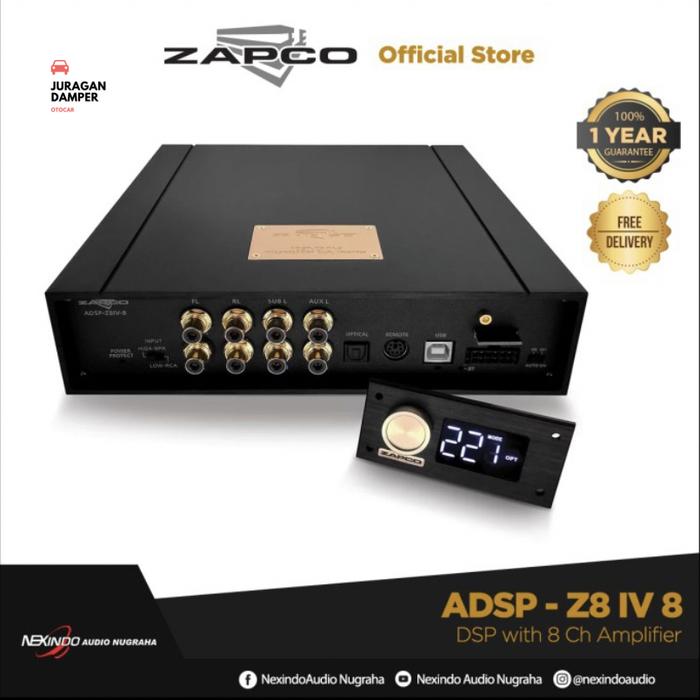

Processor Prosessor ADSP ZAPCO Z8 IV 8 DSP with 8 Ch Amplifier

ADSP Z8 IV - 8 ini adalah Digital Signal Processor (DSP) yang sudah Built in Amplifier Spesifikasi : DSP Processor: Cirrus Logic CS47048 Power: 150 MHz/32 bit/48 KHz 8-Channels Class D Amplifier ADC: Cirrus Logic CS5368 24 bit/192 KHz ADC Dynamic Range/THD: 114 dB/-105 dB DAC: Cirrus Logic CS47048 32 bit/192 KHz DAC Dynamic Range/THD: 108 dB/-98 dB Low level (Pre)/Sensitivity: 8/1-5 VRMS High Level (Spk In)/Sens.: 6/2-20 V AUX Inputs/Sensitivity: 1/0.2-4 VRMS Optical IN: 24 bit-192 KHz Freq. Response (-3dB): 10 Hz - 22.5 KHz S/N Ratio only DSP Digital Input: 110 dBA S/N Ratio only DSP Analog Input: 106 dBA S/N Ratio Amp + DSP at max. power: 95 dBA THD+N only DSP Digital Input: 0,002 % THD+N only DSP Analog Input: 0,005 % THD+N Amplif. + DSP Analog Input: 0,07 % Crosstalk at 1 Khz only DSP: 90 dB Crosstalk Amplifier + DSP: 45 dB Amp Power @ 4Ω: 8 x 80 watts Amp Power @ 2Ω: 8 x 120 watts Amp Power @ 4Ω Bridged: 4 x 240 watts Amp Power @ 4Ω: 6 x 80 + 1 x 240 watts Amp Power @ 2Ω: 6 x 120 + 1 x 240 w. (4 Ω) F/R EQ: 1-6 ch Gr. amp; Par./31 poles Effect EQ: 7-8 ch Gr. amp; Par./11 poles Mute/Solo: Yes, each channel Time Align. (Range/Steps): 0/15 ms / 0.02 ms Max Delay (Cm/Steps): 515 cm / 0.68 cm Polarity: 0/180° Display (included): 1” LCD Display (optional): 3” LCD Touch-Screen Bluetooth Digital Streaming PC/Display Connection: USB/6-pin Mini DIN Unit Dimensions: 222(L) x 230(W) x 52(H) Display Dim.: 111(L) x 49(W) x 16(H)
