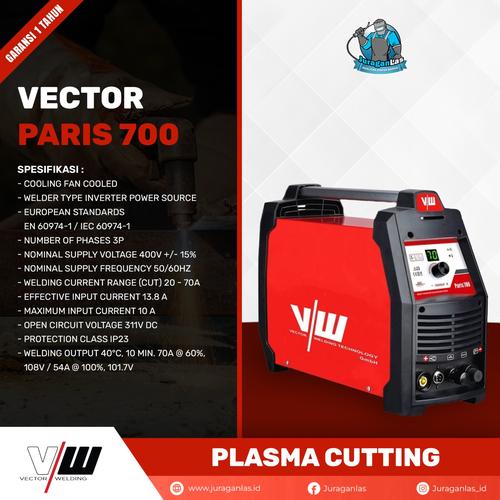

Mesin Plasma Cutting 70A merk VW Red Paris 700

Technical specifications :

Weight 16 kg
Power Source Dimensions L380mm x W160mm x H365mm
Cooling Fan Cooled
Welder Type Inverter Power Source
European Standards EN 60974-1 / IEC 60974-1
Number of Phases 3P
Nominal Supply Voltage 400V +/- 15%
Nominal Supply Frequency 50/60Hz
Welding Current Range (CUT) 20 - 70A
Effective Input Current 13.8 A
Maximum Input Current 10 A
Single Phase Generator Requirement 15 KVA
Welding Output, 40oC, 10 min. 70A @ 60%, 108V / 54A @ 100%, 101.7V
Open circuit voltage 311V DC
ProtectionClass IP23
