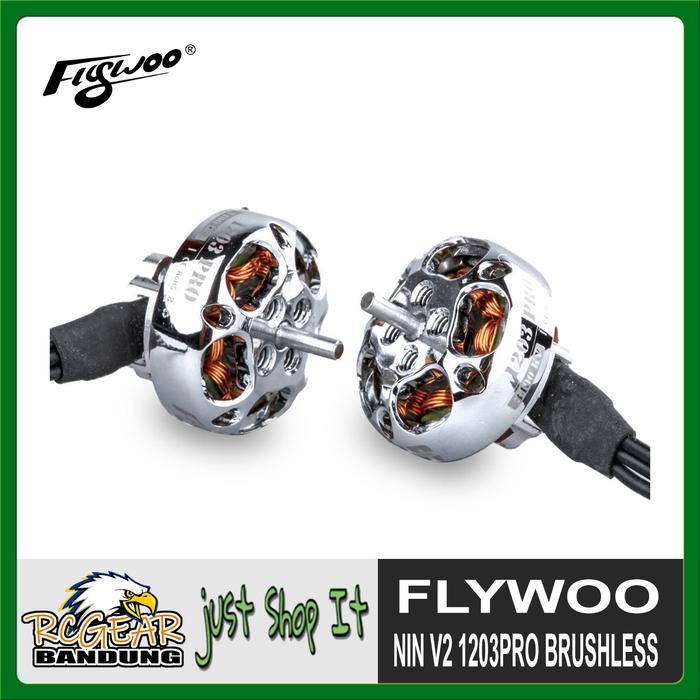

Flywoo NIN V2 1203PRO 4850KV 5500KV 1.5mm shaft Drone Brushless Motor - 5500KV

NIN V2 1203PRO was the ultra reliable high performance micro drone motor . Using the high grade unibell design , and the best electroplating process that looks clean and aggressive at the same time. The sturdy structure and high-quality materials make it performs like a beast, you"ll have your mind blown!

Best suited for cinewhoop, micro rippers or any 2''3'' freestyle and racing builds

Features
Power efficiency becomes higher, experience more flight time
The high grade unibell design , and the best electroplating process
Standard mounting pattern at the bottom, adapt to all frames on the market
Adopt a curved magnet structure to achieve more smooth and silent

KV: 5500KV

Configu-ration :9N12P
Stator Diamter : 12mm
Stator Length : 3mm
Shaft Diameter : 1.5mm
Motor Dimension(Dia.*Len) : Φ16.2*9.9mm
Weight(g) : 4.7(3cm wire)
Idle current(10) : @10V(A) : 0.7
No.of Cells(Lipo) : 3~4S
Max Continuous Power(W) 3S : 96.2
Internal Resistance : 350mΩ
Max Current(3S) : 6.5A
Max.Effciency Current : (0.5-1.6A)>84%

KV: 11500KV

Configu-ration :9N12P
Stator Diamter : 12mm
Stator Length : 3mm
Shaft Diameter : 1.5mm
Motor Dimension(Dia.*Len) : Φ16.2*9.9mm
Weight(g) : 4.7(3cm wire)
Idle current(10) : @10V(A) : 1.2
No.of Cells(Lipo) : 1~2S
Max Continuous Power(W) 3S : 88
Internal Resistance : 150mΩ
Max Current(3S) : 13.4A
Max.Effciency Current :(1.2-3.5A)>84%

Includes
1 × Motor NIN V2 1203PRO
1 × Set of M2 screws
