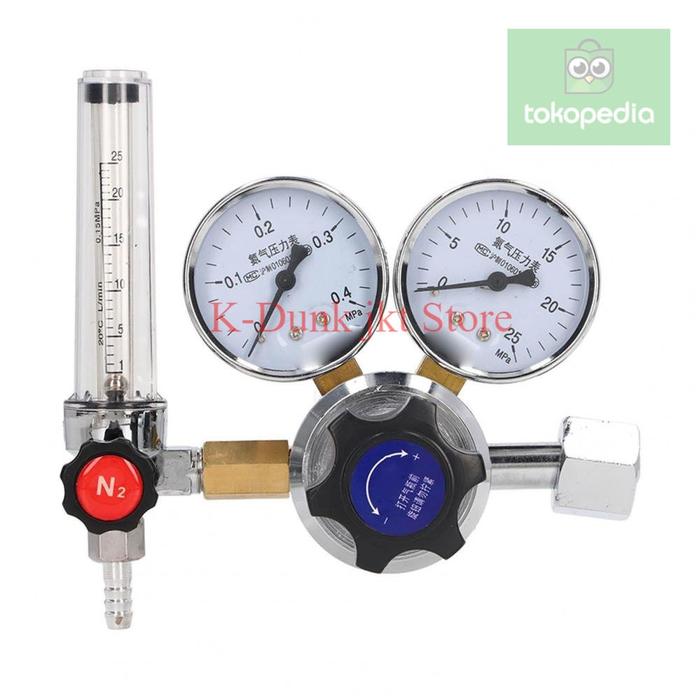

Nitrogen Flow Meter Gas Regulator Valve Brass Body for Laboratory

Fitur

1. INPUT FILTER: The filter on the input side of the valve ensures that impurities cannot enter the pressure reducing valve and damage it.
2. BRASS VALVE: The valve body is forged from hard brass, stamped and formed, with a chrome plated surface for wear resistance and durability.
3. HIGH ACCURACY: This pressure reducing valve is very responsive and has a precise and clear pressure reduction effect, making it very suitable for use in various industries such as welding.
4. FLAME RESISTANT DIAMOND: The diaphragm of the pressure reducing valve is made of fluorobutyl rubber, which has good flame resistance and ensures the safety of use.
5. WIDE APPLICATION: This pressure reducing valve is suitable for a wide range of applications in laboratories, research units, purging systems, industrial manufacturing, etc.

Specification:
Item Type: Nitrogen Gas Regulator Valve
Medium Used: Nitrogen
Filter Element: FR109210PCTFE
Filter Screen: Bronze sintered filter screen
Matrix: Forged brass
Diaphragm: Neoprene
Input Pressure: 15MPA
Output Pressure: 0.3MPA
Outlet Adjustment Range: 0.1mpa-0.15mpa
Nominal Flow Rate: 25L/min
Installation Size:
Input Connector: G5/8in for nitrogen cylinder
Output Connector OD: 8mm
Thread: M12X1
Configuration Pressure Gauge Specifications:
Input: 25MPa
Output: 25L flow meter
Scope of Application: Laboratory, research units, blowing system, industrial manufacturing, argon arc welding, gas shielded welding and other industries use

How to Use:
Connected to the valve and can be used

Package List:
1 x Nitrogen Gas Regulator Valve1 x Accessory
