Kabel Kontrol YSLY-JZ 5x0.5 Control YSLY 5x0,5 Tanpa Screen
Rp9.877
diskon 14%
Harga sebelum diskon Rp11.499
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: KABEL KONTROL YSLY 05

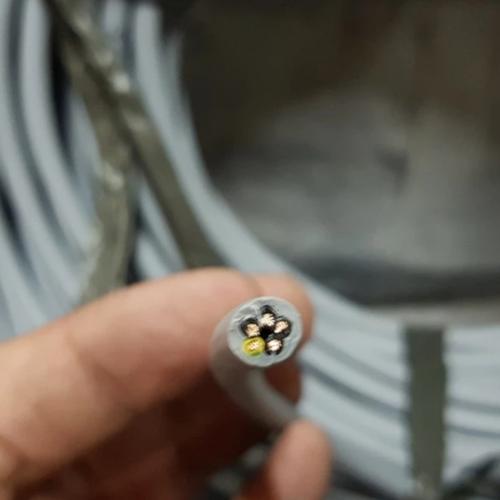

Kabel Kontrol YSLY-JZ 5x0.5 Control YSLY 5x0,5 Tanpa Screen
Kabel Control Tanpa Lapisan Screen
Kabel isi 5 dengan size 0.5mm jadi Satu
Kabel Serabut 5 core x 0.5 mm
Outer Diameter 6.1 mm
Tegangan 300/500 V
isi dalam kabel warna Hitam dengan Nomor
Warna kulit luar kabel Abu-abu
Ready stock
Harga per Meter
Application:
This cables is used as control and connecting cables for tooling machinery, production lines, conveyor and assembly line as well as in construction plant.
This cable is ideal for medium loads and flexible application for free movements without forced movement and tensile load.
Suitable to use for installation in dry, moist and wet rooms, indoor.
Cores Colour: OZ Black Cores with white numbering
Construction:
Conductor : Stranded bare Cu conductor, fine wire
Conductor : Strand structure as per IEC-60228, class 5
Insulation : Special quality PVC
Sheath : PVC, Grey colour, Flame retardant to IEC-60332-1
Electrical and Technical Data:
* Rated Voltage : 300/500V
* Test voltage : 1000VAC/ 1 min
* Insulation resistance : 20 Mohm x Km
* Max working temperature : 70 derajat C
* Min laying temperature : -5 derajat C
* Bending radius : 15 x cable diameter
Kabel Control Tanpa Lapisan Screen
Kabel isi 5 dengan size 0.5mm jadi Satu
Kabel Serabut 5 core x 0.5 mm
Outer Diameter 6.1 mm
Tegangan 300/500 V
isi dalam kabel warna Hitam dengan Nomor
Warna kulit luar kabel Abu-abu
Ready stock
Harga per Meter
Application:
This cables is used as control and connecting cables for tooling machinery, production lines, conveyor and assembly line as well as in construction plant.
This cable is ideal for medium loads and flexible application for free movements without forced movement and tensile load.
Suitable to use for installation in dry, moist and wet rooms, indoor.
Cores Colour: OZ Black Cores with white numbering
Construction:
Conductor : Stranded bare Cu conductor, fine wire
Conductor : Strand structure as per IEC-60228, class 5
Insulation : Special quality PVC
Sheath : PVC, Grey colour, Flame retardant to IEC-60332-1
Electrical and Technical Data:
* Rated Voltage : 300/500V
* Test voltage : 1000VAC/ 1 min
* Insulation resistance : 20 Mohm x Km
* Max working temperature : 70 derajat C
* Min laying temperature : -5 derajat C
* Bending radius : 15 x cable diameter
