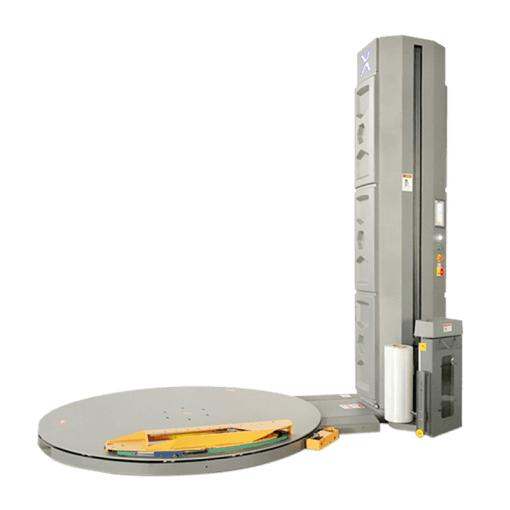

Full Auto Pallet Wrapper X100 Mesin Packaging Wrapping Pengemas

Spesifikasi
HARGA SEBENARNYA RP. 109.000.000( 109 jt)

MODEL : X100
Power : 1500 watt
Column Height : 2650mm
Max Wrapping Height & Weight : 2400mm / 2000kg
Turntable Size : 1650mm
Maximum wrapping speed : 20-25 loads/hour
Turntable Speed : 0-12RPM (Adjustable)
Turntable Drive : 1 PH Wheel Drive
Standard Pre-Stretch : 300% pre-stretch
Standard Film Width : 500mm
Film Capacity : 250mm Diametery
Remote Control : Have
Film Cut and Clamp : Automatic
Integrated Scale : Optional
Machine Size : L:2800mm W:1650mm H:2745mm
Machine Weight : 680KG

SPAREPART BRAND
Photoeletric sensor : SICK (Germany)
PLC : SIEMENS (Germany)
Travel Switch : OMRON (Japan)
Relay : OMRON (Japan)
Touch screen : SIEMENS 7inch
Position switch : OMRON (Japan)

Full Auto Pallet Wrapper X100
Product Application
1.Pallet stretch wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, et

Main Features

1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turntable
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7. PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8. Pallet stretch wraping machine soft start and soft stop.
9. Suitable for heavy pallet
10. Remote control sytem ,fully automatic cut and clamp film

Harap konfirmasi stok dan ongkir luar kota.
Info lebih lanjut hubungi kami, HP/WA : 0858 9457 4856
