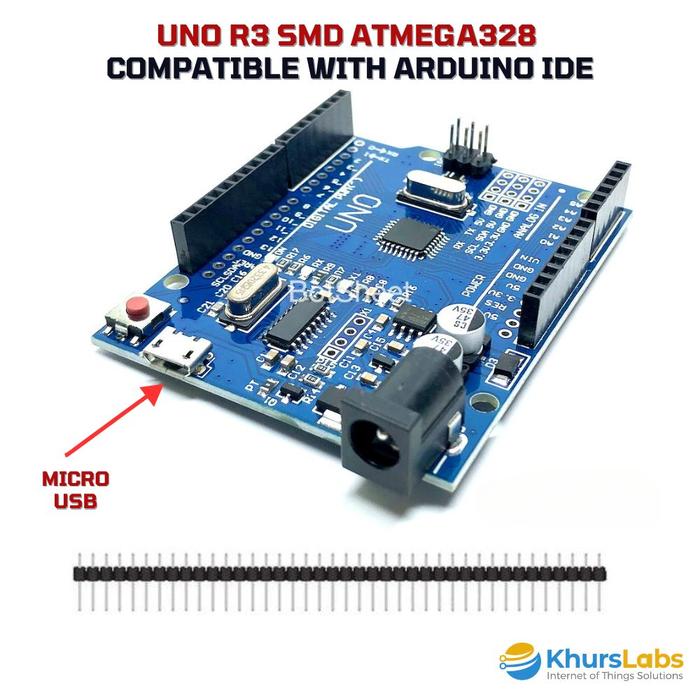

ARDUINOO Uno R3 SMD Atmega328 Compatible With Arduino IDE - MICRO USB

NOTE: TIDAK MENERIMA KLAIM ATAU KOMPLAIN DILUAR SISTEM TOKOPEDIA


SKU: KG2007 / USB-B
SKU: KG2007 / MICRO USB
SKU: KG4006B / TYPE C

Keunggulan :
=================================
- Harga yang lebih Ekonomis
- Memiliki kehandalan dan kualitas yang sangat baik
- include Kabel USB
- Include pin Header
- Add two rows of the holes for the pins. So it can be connected with normal Dupont line.
- Add 3 rows of holes for wiring.
- Change the in-line package of ATMEGA328P to flat package.

Spesifikasi :
=================================
- Microcontroller : ATmega328 SMD
- Operating Voltage : 5V
- Input Voltage (recommended) : 7-12V
- Digital I/O Pins : 14 (of which 6 provide PWM output)
- Analog Input Pins : 6
- Flash Memory : 32 KB (ATmega328) of which 0.5 KB used by bootloader
- SRAM : 2 KB (ATmega328)
- EEPROM : 1 KB (ATmega328)
- Clock Speed : 16 MHz

Aplikasi :
=================================
- Mikrokontroler
- Pemrosesan sensor dan dtranducer
- Kontrol Aktuator, relay ddl.
- Pemrosesan data
- Robotik
- Industrial
