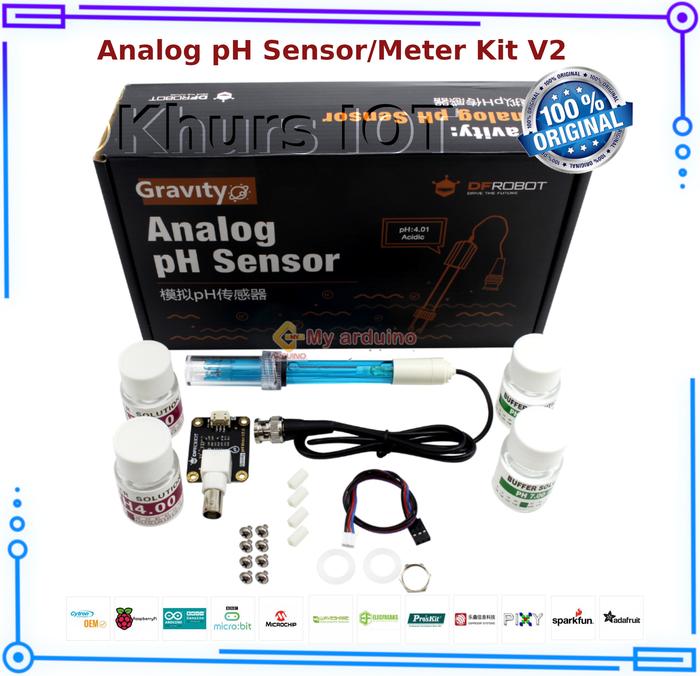

DFRobot : Analog pH Sensor / Meter Kit V2 Lab Grade with Calibration Solutions
Rp915.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: 04 - DFROBOT OFFICIAL
𝐍𝐎𝐓𝐄: 𝐓𝐈𝐃𝐀𝐊 𝐌𝐄𝐍𝐄𝐑𝐈𝐌𝐀 𝐊𝐋𝐀𝐈𝐌 𝐀𝐓𝐀𝐔 𝐊𝐎𝐌𝐏𝐋𝐀𝐈𝐍 𝐃𝐈 𝐋𝐔𝐀𝐑 𝐒𝐈𝐒𝐓𝐄𝐌 𝐓𝐎𝐊𝐎𝐏𝐄𝐃𝐈𝐀
SKU: KB2004
FEATURES
3.3~5.5V wide voltage input
Hardware filtered output signal, low jitter
Gravity connector and BNC connector, plug and play, no welding
Software library supports two-point calibration and automatically identifies standard buffer solution
Uniform size and connector, convenient for the design of mechanical structures
SPECIFICATION
Signal Conversion Board (Transmitter) V2
Supply Voltage: 3.3~5.5V
Output Voltage: 0~3.0V
Probe Connector: BNC
Signal Connector: PH2.0-3P
Measurement Accuracy: ±0.1@25℃
Dimension: 42mm*32mm/1.66*1.26in
pH Probe
Probe Type: Laboratory Grade
Detection Range: 0~14
Temperature Range: 5~60°C
Zero Point: 7±0.5
Response Time: Internal Resistance: Probe Life: >0.5 years (depending on the frequency of use)
Cable Length: 100cm
SHIPPING LIST
pH Probe(Laboratory Grade) x1
pH Signal Conversion Board x1
Gravity Analog Sensor Cable x1
pH Standard Buffer Solution 4.0 x2
pH Standard Buffer Solution 7.0 x2
Waterproof Gasket x2
Screw Cap for BNC Connector x1
M3 * 10 nylon pillar x4
M3 * 5 screws x8
https://wiki.dfrobot.com/Gravity__Analog_pH_Sensor_Meter_Kit_V2_SKU_SEN0161-V2
