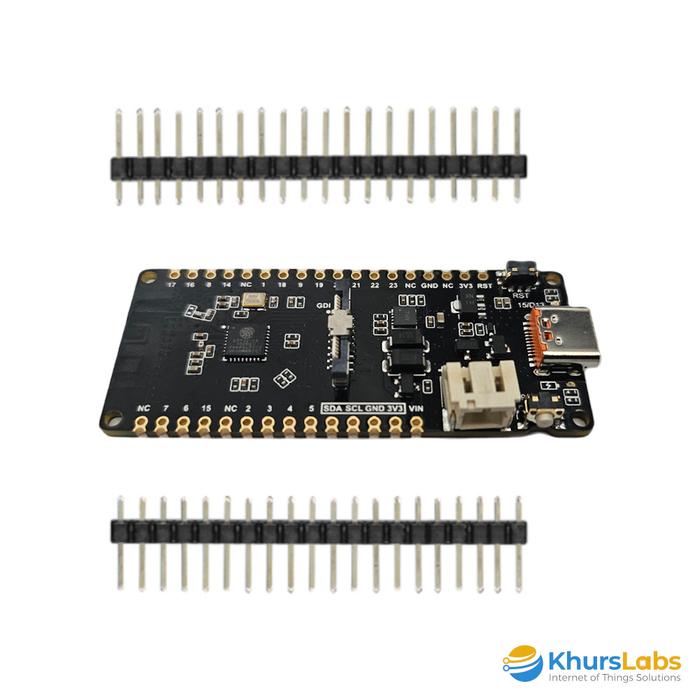

FireBeetle 2 ESP32 C6 IoT Development Board (Supports Wi-Fi 6, Bluetooth 5, Solar-Powered)
Rp150.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: 04 - DFROBOT OFFICIAL
SKU: DFR1075 / KM4036
FEATURES
Equipped with the ESP32-C6 chip, it supports communication protocols including Wi-Fi, BLE, Zigbee, and Thread.
Supports Wi-Fi 6 protocol for lower latency and lower power consumption.
Solar charging enables deployment without the need for power lines.
Battery level detection allows monitoring of device battery information.
Ultra-low power consumption with deep sleep at 16uA.
Onboard GDI interface for easy connection to screens.
APPLICATIONS
Indoor Air Quality Monitoring
Indoor Ambient Light
Balcony Plant Soil Monitoring
Outdoor Weather Station
SPECIFICATION
Basic Parameters
Operating Voltage: 3.3V
Type-C Input Voltage: 5V DC
VCC Input Voltage: 5V DC or 4.5-6V Solar Panel
Max Charging Current: 0.5A
Sleep current: 16uA (in deep sleep mode, powered by battery)
Operating Temperature: -10~60℃
Dimension: 25.4x60mm/1x2.36”
Hardware Information
Processor: RISC-V single-core processor
Main Frequency: 160 MHz
SRAM: 512KB
ROM: 320KB
Flash: 4MB
RTC SRAM: 16KB
USB: USB 2.0 CDC
WIFI
WIFI Protocol: IEEE 802.11b/g/n
IEEE 802.11ax (20 MHz-only non-AP mode)
Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
WIFI Frequency: 2.4GHz
Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU
Bluetooth
Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
IEEE 802.15.4
Compatible with IEEE 802.15.4-2015 protocol
Frequency band: 2.4GHz
Data rate: 250Kbps
Supports Thread 1.3 and Zigbee 3.0
Ports
Digital I/O x19
LED PWM 6 Channel
SPI x1
UART x3 (LP UART x1)
I2C x2 (LP I2C x1)
I2S x1
IR Transceiver: transmit channel x5, receive channel x5
1 × 12-bit SAR ADC, 7 Channel
DMA Controller: transmit channel x3, receive channel x3
FEATURES
Equipped with the ESP32-C6 chip, it supports communication protocols including Wi-Fi, BLE, Zigbee, and Thread.
Supports Wi-Fi 6 protocol for lower latency and lower power consumption.
Solar charging enables deployment without the need for power lines.
Battery level detection allows monitoring of device battery information.
Ultra-low power consumption with deep sleep at 16uA.
Onboard GDI interface for easy connection to screens.
APPLICATIONS
Indoor Air Quality Monitoring
Indoor Ambient Light
Balcony Plant Soil Monitoring
Outdoor Weather Station
SPECIFICATION
Basic Parameters
Operating Voltage: 3.3V
Type-C Input Voltage: 5V DC
VCC Input Voltage: 5V DC or 4.5-6V Solar Panel
Max Charging Current: 0.5A
Sleep current: 16uA (in deep sleep mode, powered by battery)
Operating Temperature: -10~60℃
Dimension: 25.4x60mm/1x2.36”
Hardware Information
Processor: RISC-V single-core processor
Main Frequency: 160 MHz
SRAM: 512KB
ROM: 320KB
Flash: 4MB
RTC SRAM: 16KB
USB: USB 2.0 CDC
WIFI
WIFI Protocol: IEEE 802.11b/g/n
IEEE 802.11ax (20 MHz-only non-AP mode)
Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
WIFI Frequency: 2.4GHz
Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU
Bluetooth
Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
IEEE 802.15.4
Compatible with IEEE 802.15.4-2015 protocol
Frequency band: 2.4GHz
Data rate: 250Kbps
Supports Thread 1.3 and Zigbee 3.0
Ports
Digital I/O x19
LED PWM 6 Channel
SPI x1
UART x3 (LP UART x1)
I2C x2 (LP I2C x1)
I2S x1
IR Transceiver: transmit channel x5, receive channel x5
1 × 12-bit SAR ADC, 7 Channel
DMA Controller: transmit channel x3, receive channel x3
