HF Broadband Antenna DX Commander DXC–1830 Multiband 300W 1.8-30Mhz
Rp1.100.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Antenna HF
Antenna dengan kualitas tinggi dan yang sangat ekonomis
Cocok digunakan untuk segala merek dan type HF SSB ( ICOM, Yaesu, Vertex, Kenwood )
Antenna HF SSB dengan tipe bentang
Folded dipole
, memiliki spesifikasi :
- Panjang : 30 Meter
- Power Output : 300 Watt
- Frequency Range : 1.8 - 30 Mhz
- Swr : <1.5 dari 1.8 - 30 Mhz
DX Commander
DXC-1830
BROADBAND HF ANTENNA
Power 300 Watt
The DX1830 antenna is the broadband designed, it gaves wide frequency range over HF 1.8-30. SWR is below 2:1 , it could connect directlly to the Transmitter without any Tuner.
It does also low on the 50 Mhz
This antenna design is to be use from 1.8 Mhz to 30 Mhz , with added 50 Mhz design with Tuner. It capture any weak signals in receive mode and much better performance than any vertical and Trap Dipole antenna. The antenna possesses resistance to any kind of weathers and capacity to accommodate output power RF load from 300 P.E.P CW/SSB, appropriate for multi channeled transceiver radio by using only one coaxial cable.
Antenna is made of copper material woven and protected by plastic material with roll and matching circuit or balancing network.

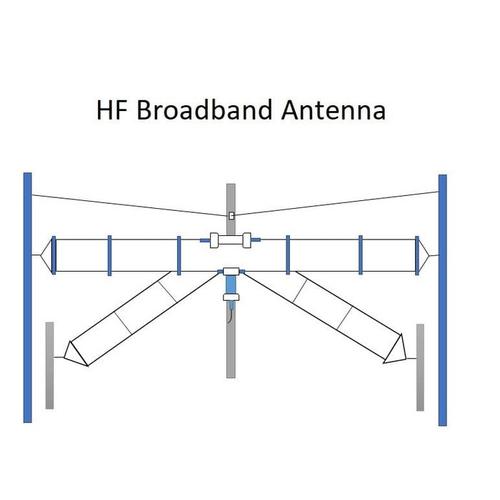

HF-30 Antenna may serve as dipole, Vertical, inverted “V” or sloper antenna having all-way transmitting characteristics in partial declivity with side en adjacent to ground, approximately 3 - 15 meters above ground.
Specifications
Frequency range : 1.8 – 30 MHz
Power rating : 300Watt
Input impedance : 50 ohms
VSWR (typical) : 1.5:1 from 1.8-30 Mhz
Length : 30 meters
Antenna wire material : Insulated Copper cable
Coaxial feedline : SO-239
Cocok digunakan untuk segala merek dan type HF SSB ( ICOM, Yaesu, Vertex, Kenwood )
Antenna HF SSB dengan tipe bentang
Folded dipole
, memiliki spesifikasi :
- Panjang : 30 Meter
- Power Output : 300 Watt
- Frequency Range : 1.8 - 30 Mhz
- Swr : <1.5 dari 1.8 - 30 Mhz
DX Commander
DXC-1830
BROADBAND HF ANTENNA
Power 300 Watt
The DX1830 antenna is the broadband designed, it gaves wide frequency range over HF 1.8-30. SWR is below 2:1 , it could connect directlly to the Transmitter without any Tuner.
It does also low on the 50 Mhz
This antenna design is to be use from 1.8 Mhz to 30 Mhz , with added 50 Mhz design with Tuner. It capture any weak signals in receive mode and much better performance than any vertical and Trap Dipole antenna. The antenna possesses resistance to any kind of weathers and capacity to accommodate output power RF load from 300 P.E.P CW/SSB, appropriate for multi channeled transceiver radio by using only one coaxial cable.
Antenna is made of copper material woven and protected by plastic material with roll and matching circuit or balancing network.
HF-30 Antenna may serve as dipole, Vertical, inverted “V” or sloper antenna having all-way transmitting characteristics in partial declivity with side en adjacent to ground, approximately 3 - 15 meters above ground.
Specifications
Frequency range : 1.8 – 30 MHz
Power rating : 300Watt
Input impedance : 50 ohms
VSWR (typical) : 1.5:1 from 1.8-30 Mhz
Length : 30 meters
Antenna wire material : Insulated Copper cable
Coaxial feedline : SO-239
