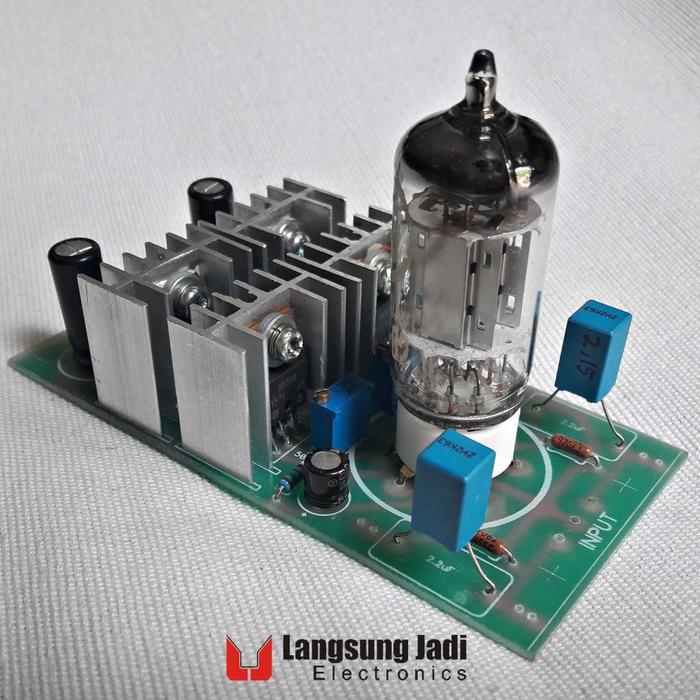

Kit Roggom 12AU7 IRF510 Stereo Hybrid MOSFET Headphone Amplifier
Rp230.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: PCB-Kit
Harga per kit belum termasuk tabung 12AU7 dan potensio volume; keduanya ada di etalase LJ.
Sebelum order, mohon:
(1) Membaca deskripsi produk sampai selesai. Kirim pertanyaan bila ada yg kurang jelas.
(2) Foto hanya referensi, tidak selalu sama persis.
(3) Cek dulu ketersediaan barang.
=
Kit hybrid tube-MOSFET stereo headphone amplifier design by Rogers Gomez (Roggom).
Kit termasuk PCB fibre glass FR4 dan semua komponen on-board (yang terpasang di PCB) kecuali tabung 12AU7. Komponen hi-grade.
Anda solder sendiri (do it your self, DIY) biar asyik.
Circuit design:
-Hybrid tube/MosFET (12AU7 tube and IRF510 MosFET).
-Single-ended class A.
-Apply CCS (constant current source) with LM317 regulator.
-Low voltage: 12-13.8 volt DC.
-Simple, small and compact, good sound quality.
Komponen-komponen hi-grade:
8x resistor Vishay Dale dan Takman (tergantung stok).
2x precision trimpot multiturn.
4x elco Elna, Panasonic FC, Vishay BC, original Rubycon (tergantung stok).
2x capacitor Siemens Epcos MKT, Elna Silmic II/Cerafine, Nichicon Muse ES (tergantung stok).
2x MOSFET IRF510/610.
2x IC LM317.
1x soket tabung 9-pin PCB-mount.
4x heatsink TO-220 (PCB-mount),
4 set isolator, mur-baut-ring.
1x PCB 10.2x5 cm (fiber glass FR4 with green solder masking, silver-plated, overlay).
Total 30pcs.
Box:
https://www.tokopedia.com/langsungjadi/black-110x76x35mm-aluminum-chassis-with-l-panel-ygs-003-box-casing
Siap pakai:
https://www.tokopedia.com/langsungjadi/hybrid-single-ended-class-a-stereo-headphone-amplifier-12au7-irf510
Skema dan petunjuk:
http://diyaudioprojects.com/Solid/12AU7-IRF510-LM317-Headamp
