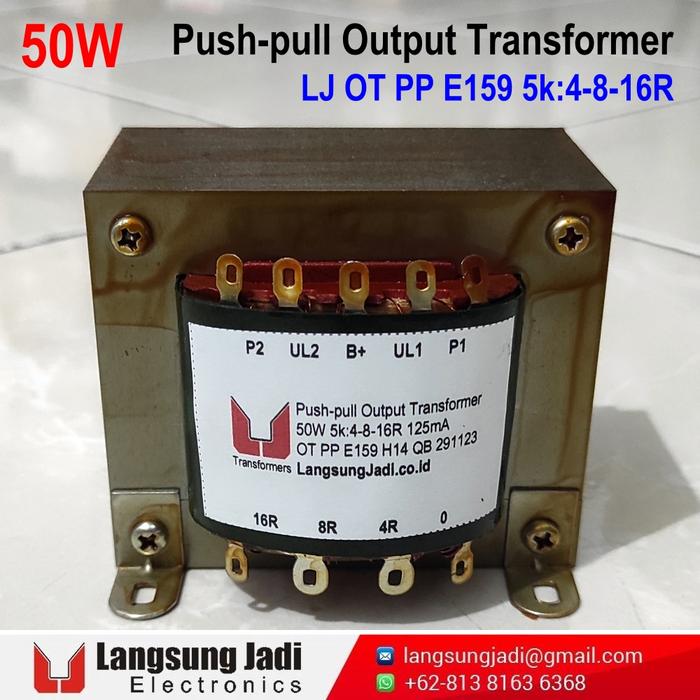

LJ OT PP E159 5k 50W Push-pull Output Transformer EL34 KT88 6L6 300B - OT (no cover)
Rp1.100.000
Pilih style: OT (no cover)
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Transformer
Harga per 1pc. Sebelum order, mohon:
(1) Membaca deskripsi produk sampai selesai. Foto hanya referensi, tidak selalu sama persis. Kirim pertanyaan bila ada yg kurang jelas.
(2) Cek dulu ketersediaan barang.
=
LJ OT PP E159 5k, 50W push-pull output transformer, made by LangsungJadi.co.id. Suitable for EL34, 6CA7, 6550, KT88, KT66, 6L6, 7591, 2A3, 300B or similar tubes audio/guitar amplifier.
The E159 Series are #TheBestBuy output transformer from LJ. Wide frequency bandwidth, flat phase response, very low L-leakage, and low distortions.
Applications example:
-KT66: AB1, fix-biased, 50W, 510Va
-KT66: B, fix-biased, 50W, 450-480Va
-EL34: B, fix-biased, 58W, 450Va
-6L6: A, fix/auto-biased, 13.8-18.5W, 250-270Va
Specifications:
--- lihat tabel di gambar terakhir --
Quality Assurance:
-Magnetic wire: good quality solid copper
-Core: EI H14-grade
-Multi-winding interleaves
-Balanced winding, QB technique
-Moisture control: varnish and baked
-Completely tested: LCR meter, computer-based pattern test, and on equipment test.
Options:
-Secondary: 0-4-8-16, 0-4-8, 0-6, 0-8, or 0-8-16 ohm.
-Lead-out: solder tap or cable @20cm.
-Style: Open, no cover (default) or with top/side cover (see/choose a variant).
For custom-made order please contact us.
Webstore: www.TokoKomponen.com
LJ's Gallery: www.LangsungJadi.co.id
(1) Membaca deskripsi produk sampai selesai. Foto hanya referensi, tidak selalu sama persis. Kirim pertanyaan bila ada yg kurang jelas.
(2) Cek dulu ketersediaan barang.
=
LJ OT PP E159 5k, 50W push-pull output transformer, made by LangsungJadi.co.id. Suitable for EL34, 6CA7, 6550, KT88, KT66, 6L6, 7591, 2A3, 300B or similar tubes audio/guitar amplifier.
The E159 Series are #TheBestBuy output transformer from LJ. Wide frequency bandwidth, flat phase response, very low L-leakage, and low distortions.
Applications example:
-KT66: AB1, fix-biased, 50W, 510Va
-KT66: B, fix-biased, 50W, 450-480Va
-EL34: B, fix-biased, 58W, 450Va
-6L6: A, fix/auto-biased, 13.8-18.5W, 250-270Va
Specifications:
--- lihat tabel di gambar terakhir --
Quality Assurance:
-Magnetic wire: good quality solid copper
-Core: EI H14-grade
-Multi-winding interleaves
-Balanced winding, QB technique
-Moisture control: varnish and baked
-Completely tested: LCR meter, computer-based pattern test, and on equipment test.
Options:
-Secondary: 0-4-8-16, 0-4-8, 0-6, 0-8, or 0-8-16 ohm.
-Lead-out: solder tap or cable @20cm.
-Style: Open, no cover (default) or with top/side cover (see/choose a variant).
For custom-made order please contact us.
