LJ OT SE E23 5k 5W Single-ended Output Transformer EL84 6V6 EL90 6P15

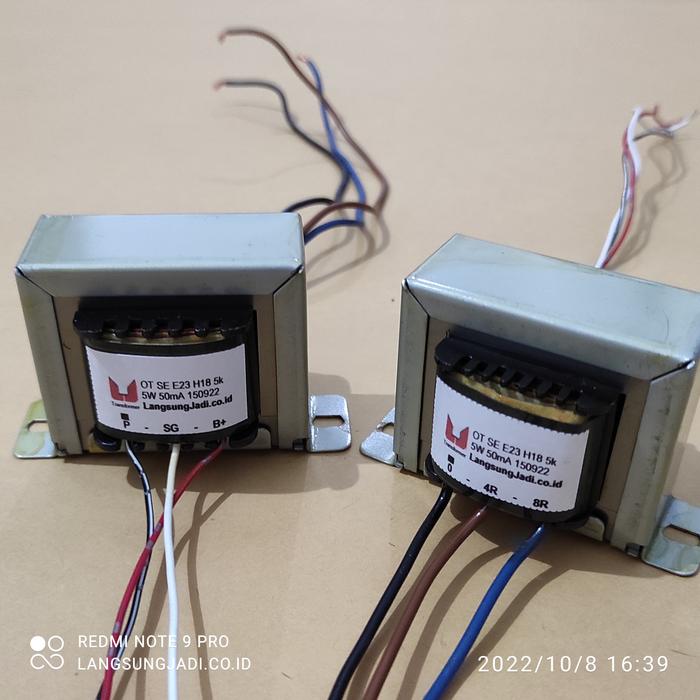

Sebelum order, mohon: (1) Membaca deskripsi produk sampai selesai. Foto hanya referensi, tidak selalu sama persis (stok bergulir). Kirim pertanyaan bila ada yg kurang jelas. (2) Cek dulu ketersediaan barang. = 1pc LJ OT SE E23-5k single-ended output transformer, made by LangsungJadi.co.id. Suitable for EL84, 6V6 or similar tubes audio amplifier. Power rating: 5 watts. Great for guitar, hi-fi, and radio amplifier. The E23-5k is a #34;mur-mer #34; SE output transformer, inspired by but better than the old Philips and Grundig on tube radio receivers. Frequency bandwidth potential is 26Hz-38kHz, low L-leakage, and low distortion. Tube Applications (4k-5k5): -EL84 fam: 6BQ5 6P15, CV2975, N709, 6П14П, 6p14, 7189 -6V6 fam: VT-107, CV510 -6AQ5/12AQ5 fam: EL90, N727, BPM04, CV1862, 6L31 -7C5, CV885 -14C5 Specifications (ref. only, as per September, 2022): -Output power max.: 5 watts. -Primary (10% tolerance): --Z: 5k ohm --IDC max.: 50mA --L @1kHz: 6-7 henry --DCR: 356 ohm -Secondary: 0-4-8 ohm. -L-leakage: 27.2-28.3mH (4R), 18-19mH (8R). -With ultra-linear (screen grid) tap. -Body dimension (LxWxH): 60x51x51mm. -Style: open with U-cover. -Mounting hole: 66-75mm, D: 3mm. -Net weight: 545g ea. Quality Assurance: -Magnetic wire: good quality solid copper. -Core: EI H18-grade. -Multi-winding interleaves. -Moisture control: varnish and baked. -Completely tested: LCR meter, computer based pattern test, and live test (on equipment). Frequency Bandwidth (f3), P/S-loaded measurement: Non-inverting config: n/a Inverting config: -4R: 30Hz-31kHz -8R: 26Hz-38kHz Optional (please notes): -Lead-out: solder tap or cable 15-20cm. Gallery: https://langsungjadi.co.id/gallery/index.php?/category/119 For custom-made order please contact us. Kontak LJ: Chat/Diskusi Tokopedia. Webstore: www.TokoKomponen.com
