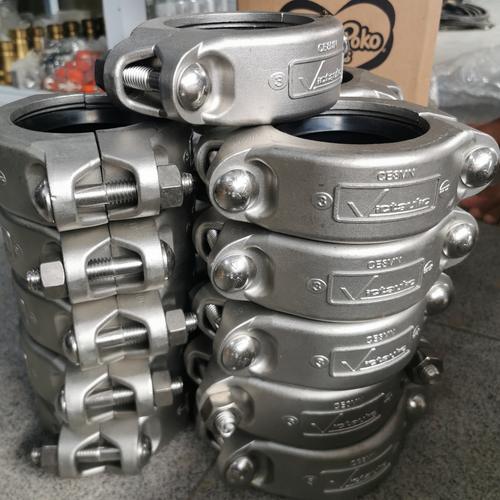

Clamp Victaulic SS Duplex 3" CE8MN Style 77DX EW EPDM Gasket

Clamp Victaulic SS Duplex 3" CE8MN Style 77DX EW EPDM Gasket

3" = 88,9mm PIPES
c/w EW- EPDM Gasket ( standart)


Gaskets:
• Grade “EW” EPDM
EPDM (Green W color code). Temperature range –30°F to +230°F/–34°C to +110°C.
Recommended for hot water service within the specified temperature range plus a variety of
dilute acids, oil-free air and many chemical services. WRAS-certified material with approved
microbiological resistance to BS 6920 for cold and hot potable water service up to +149°F/+65°C.
UL Classified to ANSI/NSF 61 for cold +86°F/+30°C and hot +180°F/+82°C potable water service.
NOT RECOMMENDED FOR PETROLEUM SERVICES.
Optional Gaskets: (specify choice)
• Grade “E” EPDM
EPDM (Green Stripe color code). Temperature range –30°F to +230°F/–34°C to +110°C.
Recommended for cold and hot water service within the specified temperature range plus a
variety of dilute acids, oil-free air and many chemical services. UL Classified to ANSI/NSF 61 for
cold +86°F/+30°C and hot +180°F/+82°C potable water service. NOT RECOMMENDED FOR
PETROLEUM SERVICES.
• Grade “T” nitrile
Nitrile (Orange Stripe color code). Temperature range –20°F to +180°F/–29°C to +82°C.
Recommended for petroleum products, air with oil vapors, vegetable and mineral oils within the
specified temperature range. Not recommended for hot water services over
+150°F/+66°C or for hot dry air over +140°F/+60°C.
