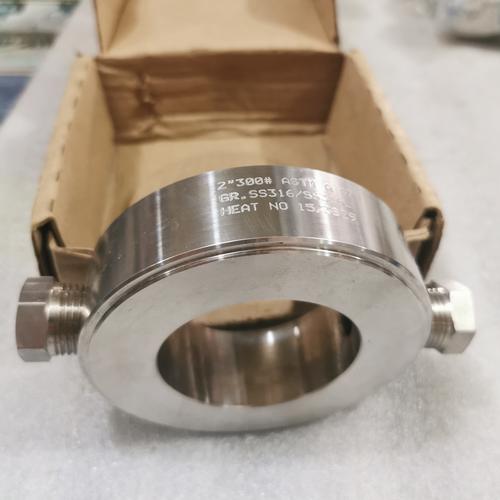

Flushing Ring 2" 300 RF For Diaphragm Seal SS316L 1/2" NPT EMERSON

Flushing Ring 2in 300#RF For Diaphragm Seal SS316L 1/2in NPT

Specifications:
Number of ports : 2 port
Flange :Size 2” ANSI 300# RF as per ANSI B 16.5
Material : ASTM A479 GR SS316/316L
Port Connection : 1/2" NPT Male Plug
Sealing Face : Suitable to Raised Face of Flange

Application:
• With Double Flushing Ports.
• Suitable With Flanged, Pancake Or Inline Diaphragm Seals

The flushing ring is designed to be sandwitched between The process
flange & the diaphragm seal.Material collected in front of diaphragm can be
flushed Out through the flushing ports
