Quick Coupling Body 1/4" BSPP Female 22000PSI STEEL CEJN 10-116-1202
Rp1.200.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Quick Coupler

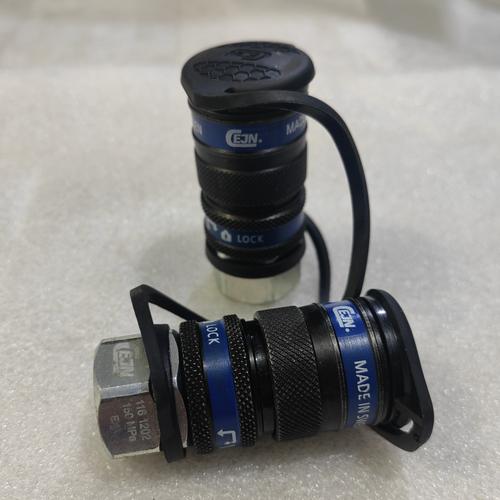

Quick Coupling Body 1/4" BSPP Female 22000PSI STEEL CEJN 10-116-1202
Temperature range: - 30°C - + 100°C
(-20°F - + 210°F)
Flow capacity at pressure drop 0.4 MPa:
6.0 l/min (1.32 GPM UK)
ULTRA HIGH PRESSURE - 116 SERIES
Series 116. 150 MPa.
Material: hardened, zinc chromate plated steel
Max. working pressure: 150 MPa =150Bar
Series 116 is available in both standard and Flat-face designs. The series is a CEJN original
with extremely small outside dimensions. Non-drip connection and disconnection are standard
on the CEJN high pressure range. All exposed components are made of zinc plated steel.
The coupling is also available in a design with a safety ring for the locking sleeve to
prevent accidental disconnection. Plastic dust caps are standard on both coupling and nipple
(dust caps of aluminum can be ordered separately). There is a coupling and nipple manufactured
of stainless steel and chemically nickel-plated steel available for use in corrosive environments.
There is a coupling with a 90°-connection angle for use in confined areas. The range is primarily
recommended for cylinders, bolt tensioner tools, bearing pullers, etc.
Made in Sweeden
Temperature range: - 30°C - + 100°C
(-20°F - + 210°F)
Flow capacity at pressure drop 0.4 MPa:
6.0 l/min (1.32 GPM UK)
ULTRA HIGH PRESSURE - 116 SERIES
Series 116. 150 MPa.
Material: hardened, zinc chromate plated steel
Max. working pressure: 150 MPa =150Bar
Series 116 is available in both standard and Flat-face designs. The series is a CEJN original
with extremely small outside dimensions. Non-drip connection and disconnection are standard
on the CEJN high pressure range. All exposed components are made of zinc plated steel.
The coupling is also available in a design with a safety ring for the locking sleeve to
prevent accidental disconnection. Plastic dust caps are standard on both coupling and nipple
(dust caps of aluminum can be ordered separately). There is a coupling and nipple manufactured
of stainless steel and chemically nickel-plated steel available for use in corrosive environments.
There is a coupling with a 90°-connection angle for use in confined areas. The range is primarily
recommended for cylinders, bolt tensioner tools, bearing pullers, etc.
Made in Sweeden
