Xmeye Nvr 16Ch 4K Hisilicon Hi3536E Rj45 Ethernet Ip Recorder Board Onvif Hdmi Sata free P2P NBD8016S-KL-V2 - 16CH, CHINA

Selamat datang di toko kami
langsung dari China-Indo, akan dikirim setelah sampe indonesia estimasi 3-4 mingguan

Packing list:
1 piece 16 Channel 4K NVR BOARD
1 piece SATA Cable
1 piece 4 PIN to SATA Power Cable
(this main board can work as NVR)
If you want a complete NVR, please click on the image below.
The Complete NVR includes: NVR Board + Power Adapter + Enclosure.
APP connection NVR motherboard operation video








Feature
Support HDMI 4K,VGA1080P HD output;

Support ONVIF;access third party;

Support web, CMS, center platform management software MYEYE, provide SDK development;

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);

Support GB28181 protocol access to third-party platforms.
What's the difference between NBD8016S-KL-V2 and NBD80S16S-KL?
The main processor of NBD8016S-KL-V2 is Hisilicon, and the main processor of NBD80S16S-KL is Mstar.

The video decoding and encoding capabilities of the Hisilicon chip are better than those of the Mstar. This is mainly reflected in the high frame rate and fast playback.
Operation Interface
Langauages
Support English, Russian, Italian, Portuguese, Spanish, French, Germany., etc...
Total 24 languages
Support 1*HDD Storage
Up to support 14TB for the disk. If the hard drive capacity is less than 2TB, we recommend you to use a 12V/2A power supply. If the hard drive capacity is more than 2TB, we recommend you to use 12V/4A or more power supply so that you can have enough power to drive the hard drive properly.

We recommend use the Newest HDD. Use the security HDD will work more better.
PC HDD most can not work.
Different Display Resolution Optional
1: 1024*768
2: 1280*1024(default)
3: 1440*900
4: 1920*1080
5: 2560*1440(2K)

Since NVRs have different display resolutions, you need to set the resolution of the NVR and your monitor to the same resolution before using it in order for the NVR to work properly.
Face Detection
The NVR can connect to the camera that supports the ONVIF protocol.
But NVR's face detection and motion detection can only work with XM IPC( no wifi version), and the IPC firmware version should be over 2021.
As long as the IPC can connect to icsee or xmeye, it means it is XM's product. You can choose the camera that can connect to icsee or xmeye at Aliexpress
Access bandwidth 80Mbps
Interface description

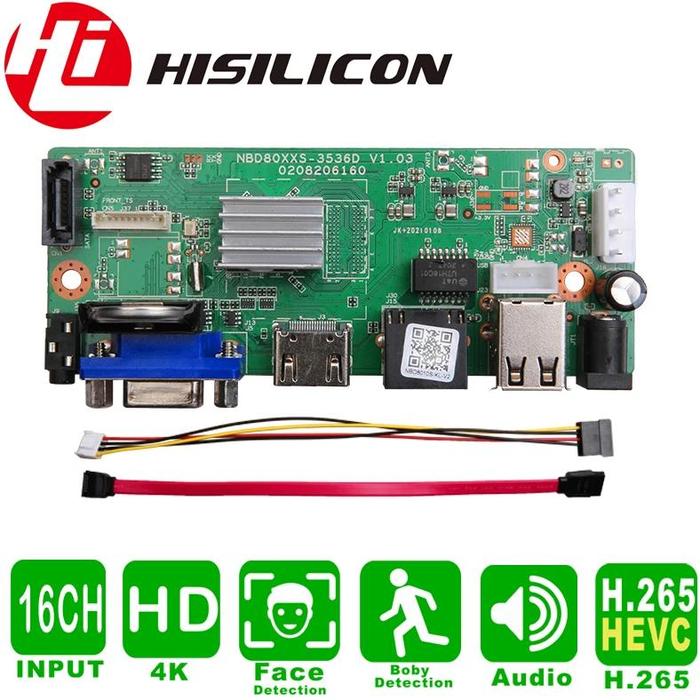

Product appearance


Specifications:
POE: None
e-Cloud(P2P): no
Two-way Audio: no
Alarm Action: FTP Photo,Email Photo,Local Alarm
Backup Type: Hard Drive
Supported Operating Systems: Microsoft Windows 98,Microsoft Windows XP,Microsoft Windows 7,Mac OS
Supported Mobile Systems: iPhone OS,Android
IP Mode: Static IP address
Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS
Network Interface: RJ45 10/100M
Hard Drive Size: 3.5''
Hard drive Interface Type: SATA
Video Standard: NTSC,PAL
Video Input Interface: RJ45
Technology: Network
Model Number: NBD8016S-KL-V2
Brand Name: XM
Origin: Mainland China
Certification: CE
Smart home platform: other


Happy shopping
