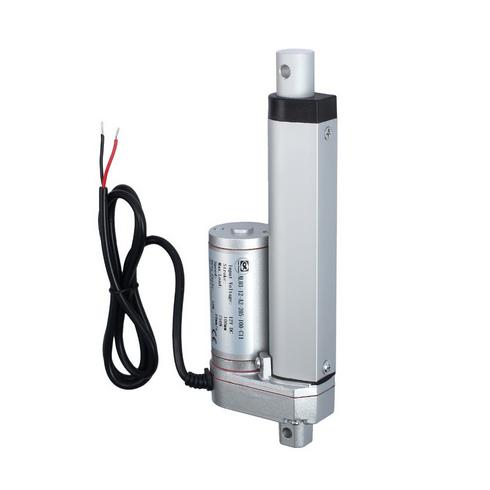

O.K DC Linier Aktuator Motor Electric Linear Actuator 12V 900N/1500N - 90KG 10CM

Package Included:
1×Linear Actuator Motor

Tersedia 4 Varian jarak Stroke
10cm (900N 10mm/s) : Panjang awal : 21cm, Panjang full stroke : 30cm
20cm (900N 10mm/s) : Panjang awal : 30cm, Panjang full stroke : 51cm
10cm (1500N 7mm/s) : Panjang awal : 21cm, Panjang full stroke : 30cm
20cm (1500N 7mm/s) : Panjang awal : 30cm, Panjang full stroke : 51cm

Item Description:
This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications.
It can be replaced by hydraulic, pneumatic products ideal for saving energy consumption.


Material: Aluminum alloy
Load capacity: 900N
Input Voltage: 12V DC
Speed: 10mm/s
Stroke Length: 500MM/400MM/300MM/200MM/100MМ
Working frequency: 20%

Technical Parameters:
Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.
The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
Ambient temperature -25°C to +65°C.
Standard protection class: IP54.
Low noise design, noise level less than 50dB.
Please do not disassemble the machine.
Product features: drive other objects to push, pull, rise, drop.
Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Applicable machinery: electric car, doors and Windows, etc
