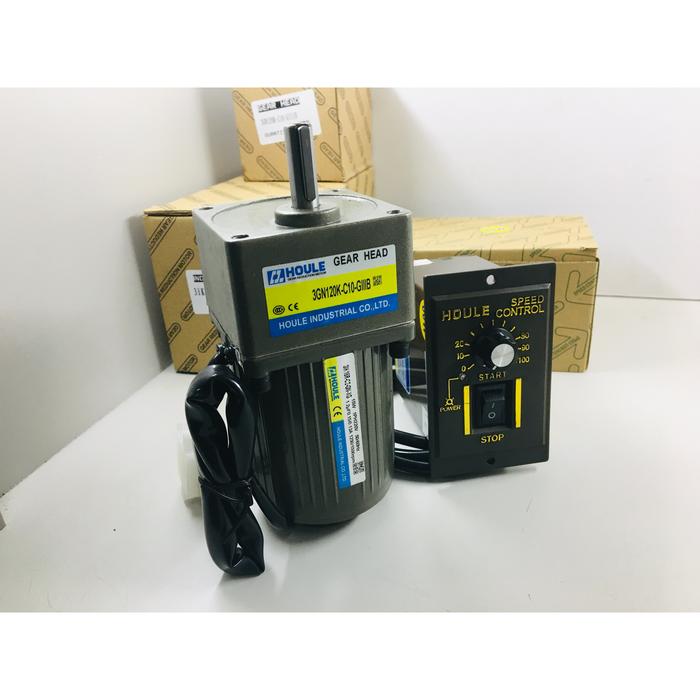

SET 1: 1 x Speed Control Motor 15W 1 x Speed Control Unit US-52 1 x Gearbox
SET 2 (RPM Display) 1 x Speed Control Motor 15W 1 x Speed Control Unit FX1000A 1 x Gearbox
Kecepatan dapat di atur!
Speed Controller terdapat 2 Variant -US 52 - Knob putaran analog biasa, putar untuk mengatur speed (PIC 1) -FX1000A - Knob putaran dengan display RPM motor (RPM sebelum gearbox)
Masuk listrik, langsung bisa di pakai.
Reversible motor/Speed control motor (bisa putar balik) Model : 3IK15R-C2-GN-XG
Dimensi Motor + Gear: 70 x 70 x 135 mm Shaft : 10mm
Gearhead /Gearbox Ratio PILIH sesuai kemauan!
3GN3 - Ratio - 1:3 Output RPM Max 425 RPM (putaran per menit)
3GN5 - Ratio - 1:5 Output RPM Max 250 RPM (putaran per menit)
3GN12.5 - Ratio - 1:12.5 Output RPM Max 100 RPM (putaran per menit)
3GN18 - Ratio - 1:18 Output RPM Max 70 RPM (putaran per menit)
3GN25 - Ratio - 1:25 Output RPM Max 50 RPM (putaran per menit)
3GN50 - Ratio - 1:50 Output RPM Max 25 RPM (putaran per menit)
3GN75 - Ratio - 1:75 Output RPM Max 17 RPM (putaran per menit)
3GN120 - Ratio - 1:120 Output RPM Max 10.5 RPM (putaran per menit)
3GN180 - Ratio - 1:180 Output RPM Max 7 RPM (putaran per menit)
Voltage : 220V 1 Phase Motor RPM : 1250 Putaran / Menit
Note : Variant dengan RPM speed controller harga lebih mahal.
Tolong di tulis di catatan order atau melalui CHAT gearbox yang di mau. Semua ratio harga sama.
