Speed Control Motor Gearbox 25W 220V 1 Phase - Gear Head Controller - SET 1

Rp1.250.000

Pilih ukuran: SET 1

  • Kondisi: Baru
  • Min. Pemesanan: 1 Buah
  • Etalase: Speed Control Motor Speed Controller
Harga Termasuk: PILIH SET 1 atau 2 di Varian

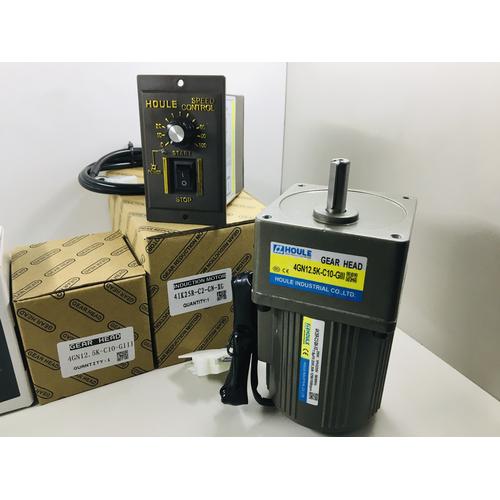

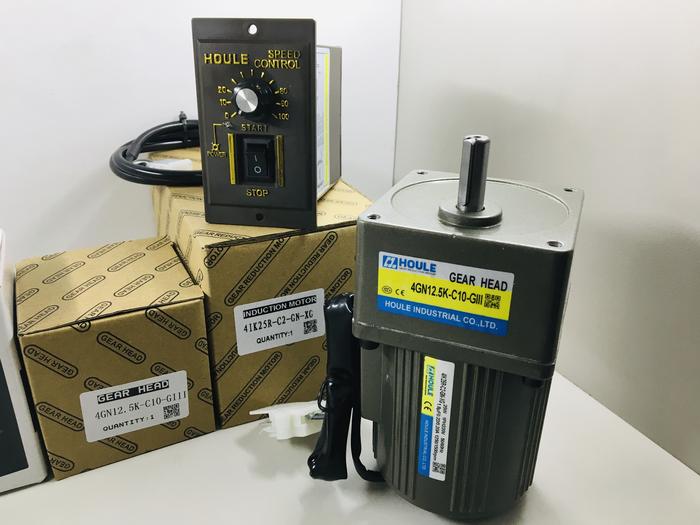

SET 1:
1 x Speed Control Motor 25W
1 x Speed Control Unit US-52
1 x Gearbox

SET 2 (RPM Display)
1 x Speed Control Motor 25W
1 x Speed Control Unit FX1000A
1 x Gearbox

Kecepatan dapat di atur!

Speed Controller terdapat 2 Variant
-US 52 - Knob putaran analog biasa, putar untuk mengatur speed (PIC 1)
-FX1000A - Knob putaran dengan display RPM motor (RPM sebelum gearbox)

Masuk listrik, langsung bisa di pakai.

Reversible motor/Speed control motor (bisa putar balik)
Model : 4IK25R-C2-GN-XG

Dimensi Motor + Gear:
80 x 80 x 145 mm
Shaft : 10mm

Gearhead /Gearbox Ratio PILIH sesuai kemauan!

4GN3- Ratio - 1:3Output RPM Max 425 RPM (putaran per menit)

4GN5- Ratio - 1:5Output RPM Max 250 RPM (putaran per menit)

4GN12.5- Ratio - 1:12.5Output RPM Max 100 RPM (putaran per menit)

4GN18- Ratio - 1:18Output RPM Max 70 RPM (putaran per menit)

4GN25- Ratio - 1:25Output RPM Max 50 RPM (putaran per menit)

4GN50- Ratio - 1:50Output RPM Max 25 RPM (putaran per menit)

4GN75- Ratio - 1:75Output RPM Max 17 RPM (putaran per menit)

4GN120- Ratio - 1:120Output RPM Max 10.5 RPM (putaran per menit)

4GN180- Ratio - 1:180Output RPM Max 7 RPM (putaran per menit)

Voltage : 220V 1 Phase
Motor RPM : 1250 Putaran / Menit


Note : Variant dengan RPM speed controller harga lebih mahal.

Tolong di tulis di catatan order atau melalui CHAT gearbox yang di mau. Semua ratio harga sama.
