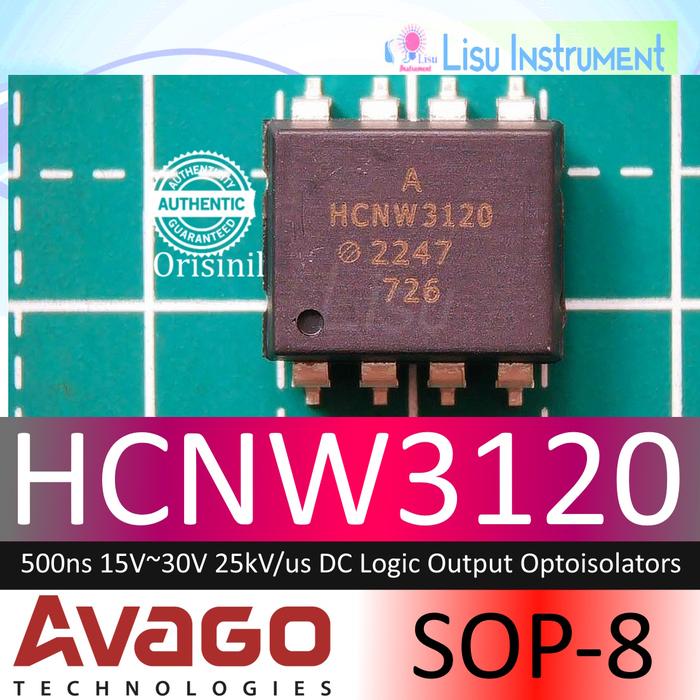

HCNW3120 500ns 15V~30V 25kV/us DC Logic Output Optoisolators

produk ASLI dari AVAGO TECHNOLOGIES
Mfr.Part #: HCNW3120-500E

Description :
the HCNW3120 contain an AlGaAs LED. The LED is optically
coupled to an integrated circuit with a power output stage.
These optocouplers are ideally suited for driving power IGBTs
and MOSFETs used in motor control inverter applications. The
high operating voltage range of the output stage provides the
drive voltages required by gate controlled devices. The voltage
and current supplied by these optocouplers make them ideally
suited for directly driving IGBTs with ratings up to
1200 V/100 A. For IGBTs with higher ratings, the HCPL-3120
series can be used to drive a discrete power stage which drives
the IGBT gate. The HCNW3120 has the highest insulation
voltage of VIORM=1414Vpeak in the IEC/EN/DIN EN 60747-5-5.
The HCPL-J312 has an insulation voltage of VIORM = 1230Vpeak
and the VIORM = 630Vpeak is also available with the HCPL-3120
(Option 060).

FEATURES :
- 2.5 A maximum peak output current
- 2.0 A minimum peak output current
- 25 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V
- 0.5 V maximum low level output voltage (VOL) Eliminates need for negative gate drive
- ICC = 5 mA maximum supply current
- Under Voltage Lock-Out protection (UVLO) with hysteresis
- Wide operating VCC range : 15 to 30 Volts
- 500 ns maximum switching speeds
- Industrial temperature range : –40 °C to 100 °C
- Safety Approval:
UL Recognized
— 5000 Vrms for 1 min. for HCNW3120

Applications :
- IGBT/MOSFET gate drive
- AC/Brushless DC motor drives
- Industrial inverters
- Switch mode power supplies
