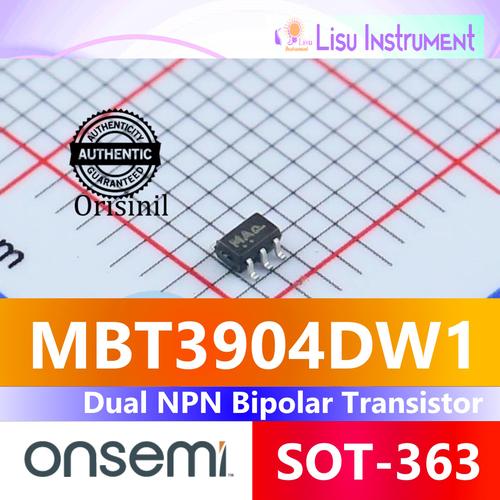

MBT3904DW1 40V 200mA Dual General Purpose Transistor MA SOT-363 onsemi

Produk ASLI dari onsemi. MAJOR. Internasional manufacturer.
Mfr.Part # : MBT3904DW1T1G

Features:
* hFE, 100-300
* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count
* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS CompliantCapable
* Category Transistors/Thyristors/Bipolar (BJT)
* Package SOT-363
* Current - Collector Cutoff 50nA
* Collector - Emitter Voltage VCEO 40V
* Pd - Power Dissipation(Pd) 150mW
* DC Current Gain 100@10mA,1.0V
* Current - Collector(Ic) 200mA
* Transition frequency(fT) 300MHz
* Vce Saturation(VCE(sat)) 200mV@10mA,1.0mA
* type NPN
* Operating Temperature -55°C~+150°C

The MBT3904DW1 and MBT3904DW2 devices are spin-offs of our popular SOT-23/SOT-323 three-leaded devices. This Dual NPN Bipolar Transistor is designed for general purpose amplifier applications and is housed in the SOT-363 six-leaded surface mount package. By putting two discrete devices in one package, these devices are ideal for low-power surface mount applications where board space is at a premium.
