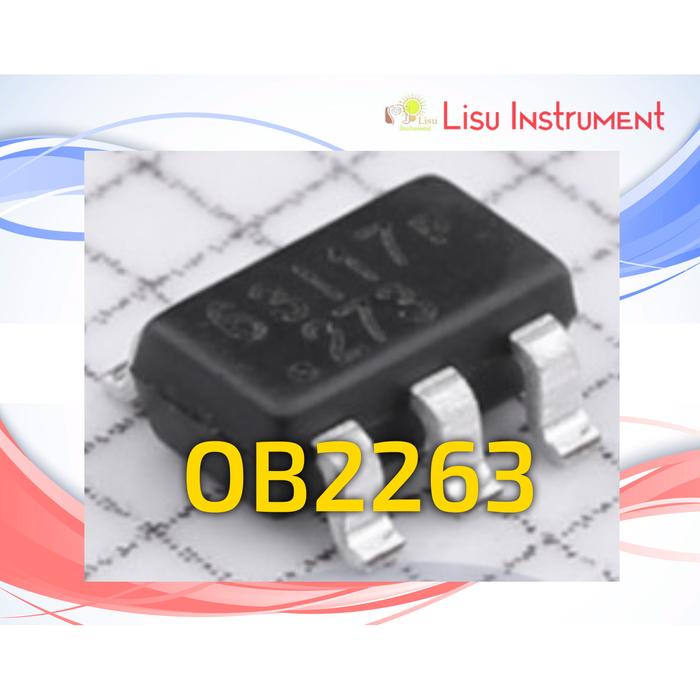

OB2263MP OB2263 OB2263AMP Current Mode PWM Controller SOT23-6 - Biasa

Deskripsi OB2263MP OB2263 OB2263AMP Current Mode PWM Controller SOT23-6 - Biasa

Variasi 'Original OB' adalah produk orisinil dari OB On-Bright Electronics - Brighten Your Life

Pertimbangkan untuk beli yg aslinya apalagi yang kirimnya jauh. :)





OB2263 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications in sub 30W range.

PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition, the IC operates in extended ‘burst mode’ to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved.

VDD low startup current and low operating current contribute to a reliable power on startup design with OB2263. A large value resistor could thus be used in the startup circuit to minimize the standby power.

The internal slope compensation improves system large signal stability and reduces the possible subharmonic oscillation at high PWM duty cycle output. Leading-edge blanking on current sense(CS) input removes the signal glitch due to snubber circuit diode reverse recovery and thus greatly reduces the external component count and system cost in the design.
