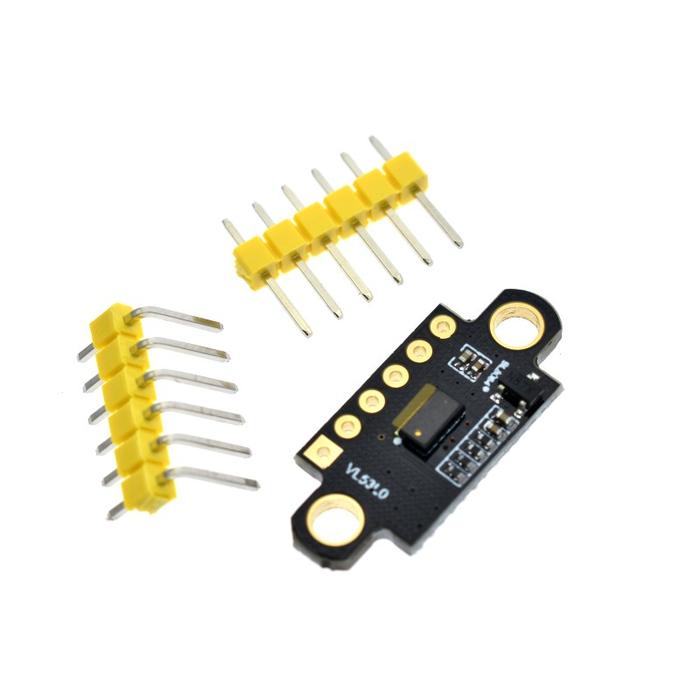

VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor 940nm Breakout Modul - Hitam

Ada varian warna board. Akan dikirim sesuai pilihannya tapi tergantung stok ya. Itu gak ada perbedaan, benar2 hanya warna board. The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet (1MB pdf) before using this product. The VL53L0 uses ST #39;s FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. This time-of-flight (TOF) measurement enables it to accurately determine the absolute distance to a target without the object #39;s reflectance greatly influencing the measurement. The sensor can report distances of up to 2 m (6.6 ft) with 1 mm resolution, but its effective range and accuracy (noise) depend heavily on ambient conditions and target characteristics like reflectance and size, as well as the sensor configuration. (The sensor #39;s accuracy is specified to range from ±3% at best to over ±10% in less optimal conditions.) PIN Description VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.) VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I⊃2;C lines high to this level. GND The ground (0 V) connection for your power supply. Your I⊃2;C control source must also share a common ground with this board. SDA Level-shifted I⊃2;C data line: HIGH is VIN, LOW is 0 V SCL Level-shifted I⊃2;C clock line: HIGH is VIN, LOW is 0 V XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.
