Atur jumlah dan catatan
Stok Total: 100
Subtotal
Rp1.636.000

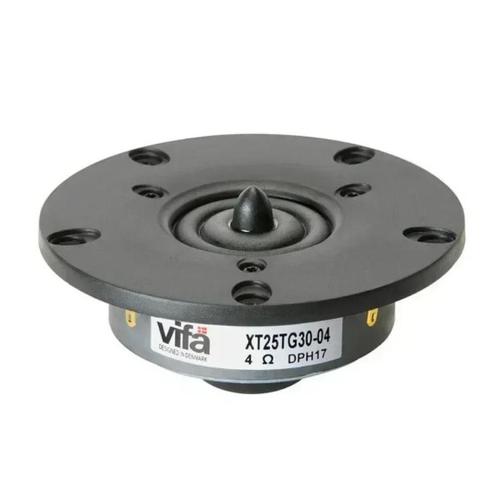

Vifa XT25TG30-04 4'' Home/Car Audio HiFi DIY Black/Crystal Membrane Tweeter Speaker Driver Unit 4/8ohm/100W D104mm
Rp1.636.000
- Kondisi: Baru
- Waktu Preorder: 30 Hari
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Vifa XT25TG30-04 4'' Home/Car Audio HiFi DIY Black/Crystal Membrane Tweeter Speaker Driver Unit 4/8ohm/100W D104mm
Sebelum order mohon dibaca rincian pd deskripsi :)
- Barang dikirim langsung dr Luar Negeri
- Estimasi pengiriman 15 Harian Sampai Alamat
- harga yang dipajang sudah full payment tapi sewaktu- waktu harga bisa saja berubah berdasarkan ketentuan cukai !!
- Packing Safety, Seller Amanah :)
- Jaminan uang kembali jika barang diterima tidak sesuai !!!
PS: This product link inlcuding 2 kind of vifa tweeters which is for XT25TG30-04 of 4ohm version with Black membrane and XT25TG60-08 which is for customized 8ohm version, the speaker membrane is crystal which imported from Germany, you can read the speaker specification
in the end of page)
1, Here is the speaker parameters for original design of 4ohm version as following
Model: XT25TG30-04
Nominal impedance: 4ohm
Voice coil resistance: 3.5ohm
Rated power: 100W
Fs=436Hz
Qms=2.5
Qes=0.54
Qts=0.44
BL=2.36Tm
Mms=0.36g
Cms=366.5 mm/N
Sd=8.2 cm
Vas=0.04 Ltrs
Sensitivity: 90.8dB(2.83V/1m)
Net weight: 0.5Kg/each
1, Here is the speaker parameters for customized design of 8ohm version as following, the membrane is crystal which imported from Germany!
Specifications:
Hign-concerned Chemical: None
Package: Yes
Material: Plastic
Model Number: XT25TG30-04,XT25TG30-08
Item Type: Speaker Unit
Brand Name: NoEnName_Null
Origin: Mainland China
Sebelum order mohon dibaca rincian pd deskripsi :)
- Barang dikirim langsung dr Luar Negeri
- Estimasi pengiriman 15 Harian Sampai Alamat
- harga yang dipajang sudah full payment tapi sewaktu- waktu harga bisa saja berubah berdasarkan ketentuan cukai !!
- Packing Safety, Seller Amanah :)
- Jaminan uang kembali jika barang diterima tidak sesuai !!!
PS: This product link inlcuding 2 kind of vifa tweeters which is for XT25TG30-04 of 4ohm version with Black membrane and XT25TG60-08 which is for customized 8ohm version, the speaker membrane is crystal which imported from Germany, you can read the speaker specification
in the end of page)
1, Here is the speaker parameters for original design of 4ohm version as following
Model: XT25TG30-04
Nominal impedance: 4ohm
Voice coil resistance: 3.5ohm
Rated power: 100W
Fs=436Hz
Qms=2.5
Qes=0.54
Qts=0.44
BL=2.36Tm
Mms=0.36g
Cms=366.5 mm/N
Sd=8.2 cm
Vas=0.04 Ltrs
Sensitivity: 90.8dB(2.83V/1m)
Net weight: 0.5Kg/each
1, Here is the speaker parameters for customized design of 8ohm version as following, the membrane is crystal which imported from Germany!
Specifications:
Hign-concerned Chemical: None
Package: Yes
Material: Plastic
Model Number: XT25TG30-04,XT25TG30-08
Item Type: Speaker Unit
Brand Name: NoEnName_Null
Origin: Mainland China
