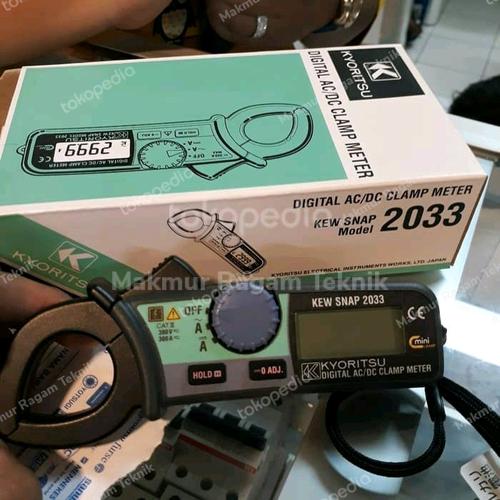

Kyoritsu 2033 Digital Clamp Meter Tang Ampere AC DC

Digital Clamp Meter AC/ DC 300A
Smallest clamp meter capable of AC and DC current measurements.
300A auto ranging has minimum resolu-tion of 0.01A AC/ DC.
Auto-zero function to allow one touch zero adjustment.

C A 40/ 300A 1% rdg 4dgt [ 50/ 60Hz] ( 0~ 40A)
| 2.5% rdg 4dgt [ 20Hz~ 1kHz] ( 0~ 40A)
| 1.5% rdg 4dgt [ 50/ 60Hz] ( 20~ 200A)
| 2.5% rdg 4dgt [ 20Hz~ 1kHz] ( 20~ 200A)
| 3.5% rdg [ 50/ 60Hz] ( 200~ 300A)
| 4% rdg [ 20Hz~ 1kHz] ( 200~ 300A)
DC A 40/ 300A
| 1% rdg 4dgt ( 0~ 40A)
| 1.5% rdg 4dgt ( 20~ 200A)
| 3% rdg ( 200~ 300A)
Conductor Size 24mm max.
Safety Standard IEC 61010-1CAT.III 300V
IEC 61010-2-032
Frequency Response DC, 20Hz~ 1kHz
Withstand Voltage 3700V AC for 1 minute
Power Source LR-44 ( 1.5V) 2
Dimensions 147( L) 59( W) 25( D) mm
Weight 100g approx.
Accessories 9090 ( Carrying Case)
LR-44 2
Instruction Manual
