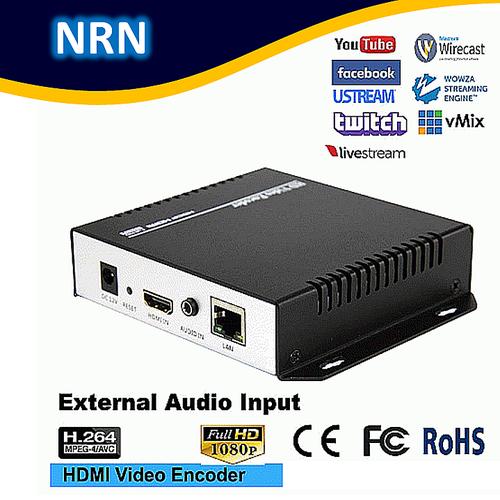

BM3100 HDMI VIDEO ENCODER LIVE BROADCAST

H.264 HD encoder is our newest professional HD audio & video encoding device with powerful functionality. It support H.264 encoding,dual-Streaming data.It is equipped with 1 HDMI channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format..its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end. satellite and terrestrial digital TV etc.it can support VLC decode.
Market Coverage
1. IPTV
2. Digital Signage
3. Video Conference
4. Replace HD Video Capture Card
5. Hotel TV system
6. Live Broadcast
7. Teaching/Campus Broadcast
8. Recording System
9. NVR(Net Video Recorder)
Specification
Video
Input
Input 1xHDMI 1.4 HDCP
Resolution 1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i
Encoding H.264/AVC Baseline/Main/High Profile Level 4.2
Output FPS 1080P60(only input 1080P60)
Bit rate 0.16Mbps~32Mbps
Rate Control CBR/VBR
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Image Enhancement,Noise Reduction, Sharpening
Latency Time 300ms
Audio
Encoding AAC/AAC+/MP3
Smapling Rate 44100/48000 Hz
Bit-rate 32K/48K/64K/96K/128K/160K/192K/384K
Sampling precision 24bit
System
Ethernet 100 Base-T Ethernet Interface
Protocol HTTP RTSP RTMP HLS UDP unicast/multicast
Control Interface WEB Manager
General
Dimension9WxLxH) 105x108(129)x28mm
Net Weight 0.2kg
Temperature 0-45(work),-20-80(storage)
Power 12V DC 1A
Consumption 5W
