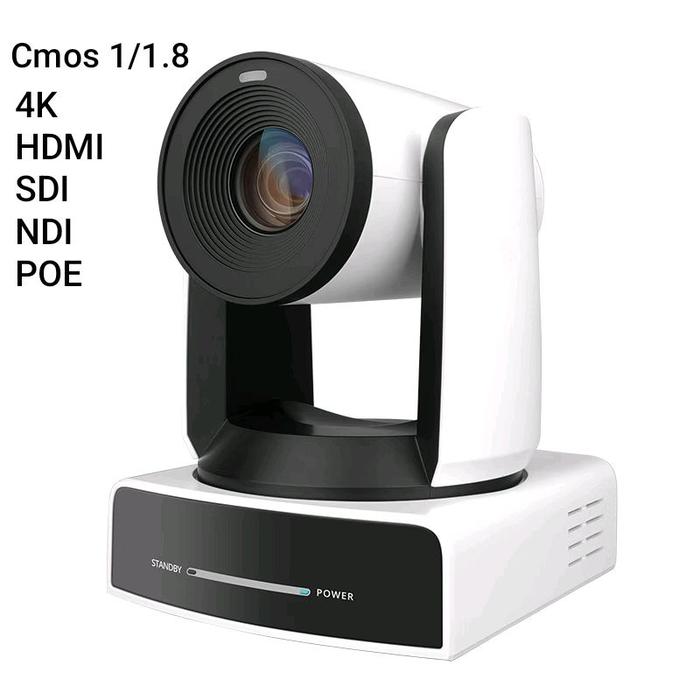

PRO 4K PTZ OPTIC 30X CAMERA VX630-ST-NDI HX2-POE BROADCAST SENSOR 1/1.8

●NDI | HX2
NDI | HX2 memiliki karakteristik penundaan rendah dan plug and play, yang nyaman untuk implementasi dan penyebaran proyek. Ini memiliki ekologi yang baik dan mendukung transmisi audio, video, dan Command kontrol bersamaan. Ini adalah generasi baru mode transmisi video jaringan.
● 4K UHD
Generasi baru sensor UHD CMOS Sony 1 / 1.8 inci berkualitas tinggi dengan maksimum 8.42 juta piksel dapat mewujudkan 4K (3840x2160) gambar berkualitas tinggi resolusi ultra tinggi. Dan ke bawah kompatibel dengan 1080p, 720p dan resolusi lainnya.
● 30x optical zoom
Item ini mengadopsi lensa fokus ultra-panjang 4K dengan kualitas tinggi dan 8 juta resolusi ultra-tinggi. Perbesaran optik 30 kali dan sudut bidang maksimum adalah 60 °
● HDMI 2.0
Mendukung antarmuka hdmi2 0, yang dapat langsung mengeluarkan video digital tanpa terkompresi 4kp60.
●Pencahayaan rendah
Sensor gambar CMOS baru dengan rasio kebisingan sinyal ultra-tinggi dapat secara efektif mengurangi kebisingan gambar dalam pencahayaan rendah. Aplikasi algoritma pengurang kebisingan 3D dapat mengurangi kebisingan gambar secara signifikan. Bahkan di bawah pencahayaan ultra-rendah, gambar tetap bersih dan jelas, dan rasio signal-to-noise lebih dari 55db.
●Antarmuka kaya dan sempurna
Mendukung keluaran HD hdmi2 0, dilengkapi dengan antarmuka 3g-sdi, dengan jarak transmisi efektif hingga 150m (1080p30). HDMI atau 3g-sdi, USB dan LAN dapat mengeluarkan 3 sinyal digital HD pada saat yang sama.
Remote kontrol ●
Berbagai mode kontrol, RS232, RS485, jaringan dan USB dapat digunakan untuk mengontrol kamera.
●Sensor gravitasi
Mendukung fungsi flip gambar otomatis, yang nyaman untuk instalasi dan penggunaan teknik.

Model
VX630AN
Name
4K60P Professional PTZ Camera
Camera
Singal System
HDMI:4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94,
1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94,
1080i/50, 1080i/29.97, 720p/60, 720p/59.94, 720p/50;
3G-SDI:1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97; 1080p/25,
1080i/60, 1080i/59.94fps; 1080i/50, 720p/60, 720p/50
Sensor
1/1.8 inches, CMOS,
Effective Pixels: 8.42 Megapixels
Scanner Mode
Progressive
Focal length
30x, f = 7.1mm~210mm , F1.61 ～ F5.19
Minimum
Illumination
0.5Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push,  Manual, VAR
Backlight
Compensation
Support
Digital Noise
Reduction
3D Digital Noise Reduction
SNR
≥55dB
Horizontal FOV
59.2° ~ 2.5°
Vertical FOV
34.6° ~ 1.4°
Pan Angle
±170°
Tilt Angle
-30° ~ +90°
Pan Speed
1.7° ~ 100° /s
Tilt Speed
1.7° ~ 69.9° /s
Image Flip
Support
Image Freeze
Support
PoE+
Support
Preset Position
255
Preset Accuracy
0.1°
USB Features
Operating System
Supported
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System /
Compression
YUY2 / H.265 / H.264 / MJPEG
Video Format
YUY2 :Max.1080p/5;
H.264 : Max.2160p/30;
H.265 HEVC: Max.2160p/30;
MJPEG: Max.2160p/30
USB Audio
Support
USB video
Communication
Protocol
UVC 1.1 ~ UVC 1.5
UVC PTZ Control
Support
Interfaces
HD Output
1 x HDMI: Version 2.0;
1 x 3G-SDI: BNC , 800mVp-p, 75Ω, as
per SMPTE 424M standard

Network Interface
1x RJ45: 10M/100M/1000M adaptive Ethernet
Audio Interface
1x Line In: 3.5mm Jack
USB Interface
1 x USB2.0,Type-A
(Support Host or Device mode)
Control  Interface
1 x RS485: 3pin phoenix port, Max
Distance: 1200m, Protocol: VISCA /
Pelco-D / Pelco-P;
1 x RS232 IN: 8pin Mini DIN, Max
Distance: 30m, Protocol: VISCA /
Pelco-D / Pelco-P;
1 x RS232 OUT: 8pin Mini DIN, Max
Distance: 30m, Protocol: VISCA only
Power Interface
JEITA type (DC IN 12V) ）
Network Features
Video Compression
H.264 / MJPEG / H.265
Video Stream
First Stream, Second Stream
First Stream
Resolution
3840x2160, 1920x1080, 1280x720,  1024x576 etc.
Second Stream
Resolution
720x576, 720x480, 320x240 etc.
Video Bit Rate
First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps
Bit Rate Control
VBR, CBR
Frame Rate
50Hz: 1fps ~ 50fps,  60Hz: 1fps ~ 60fps
Audio Compression
AAC
Audio Bit Rate
96kbps, 128kbps
Protocol
NDI|HX2, SRT, TCP/IP,HTTP,RTSP,
RTMP(s),Onvif,DHCP,Multicast, etc.
General Specifications
Input Voltage
DC 12V/PoE+(802.3at)
Input Current
2A（Max.）
Operating
Temperature
0 ~ 40°C
Storage Temperature
-40°C ~ 60°C
Indicator lamp

Power State, Run State, TALLY Lamp
Power Consumption
18W（Max.）
Dimension
170mm x 228mm x 181mm
Net Weight
2.0Kg

Model
VX630A
Name
4K60P Professional PTZ Camera
Camera
Singal System
HDMI:4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94,
1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94,
1080i/50, 1080i/29.97, 720p/60, 720p/59.94, 720p/50;
3G-SDI:1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97; 1080p/25,
1080i/60, 1080i/59.94fps; 1080i/50, 720p/60, 720p/50
Sensor
1/1.8 inches, CMOS,
Effective Pixels: 8.42 Megapixels
Scanner Mode
Progressive
Focal length
30x, f = 7.1mm~210mm , F1.61 ～ F5.19
Minimum
Illumination
0.5Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push,  Manual, VAR
Backlight
Compensation
Support
Digital Noise
Reduction
3D Digital Noise Reduction
SNR
≥55dB
Horizontal FOV
59.2° ~ 2.5°
Vertical FOV
34.6° ~ 1.4°
Pan Angle
±170°
Tilt Angle
-30° ~ +90°
Pan Speed
1.7° ~ 100° /s
Tilt Speed
1.7° ~ 69.9° /s
Image Flip
Support
Image Freeze
Support
PoE+
Support
Preset Position
255
Preset Accuracy
0.1°
USB Features
Operating System
Supported
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System /
Compression
YUY2 / H.265 / H.264 / MJPEG
Video Format
YUY2 :Max.1080p/5;
H.264 : Max.2160p/30;
H.265 HEVC: Max.2160p/30;
MJPEG: Max.2160p/30
USB Audio
Support
USB video
Communication
Protocol
UVC 1.1 ~ UVC 1.5
UVC PTZ Control
Support
Interfaces
HD Output
1 x HDMI: Version 2.0;
1 x 3G-SDI: BNC , 800mVp-p, 75Ω, as
per SMPTE 424M standard

Network Interface
1x RJ45: 10M/100M/1000M adaptive Ethernet
Audio Interface
1x Line In: 3.5mm Jack
USB Interface
1 x USB2.0,Type-A
(Support Host or Device mode)
Control  Interface
1 x RS485: 3pin phoenix port, Max
Distance: 1200m, Protocol: VISCA /
Pelco-D / Pelco-P;
1 x RS232 IN: 8pin Mini DIN, Max
Distance: 30m, Protocol: VISCA /
Pelco-D / Pelco-P;
1 x RS232 OUT: 8pin Mini DIN, Max
Distance: 30m, Protocol: VISCA only
Power Interface
JEITA type (DC IN 12V) ）
Network Features
Video Compression
H.264 / MJPEG / H.265
Video Stream
First Stream, Second Stream
First Stream
Resolution
3840x2160, 1920x1080, 1280x720,  1024x576 etc.
Second Stream
Resolution
720x576, 720x480, 320x240 etc.
Video Bit Rate
First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps
Bit Rate Control
VBR, CBR
Frame Rate
50Hz: 1fps ~ 50fps,  60Hz: 1fps ~ 60fps
Audio Compression
AAC
Audio Bit Rate
96kbps, 128kbps
Protocol
NDI|HX2, SRT, TCP/IP,HTTP,RTSP,
RTMP(s),Onvif,DHCP,Multicast, etc.
General Specifications
Input Voltage
DC 12V/PoE+(802.3at)
Input Current
2A（Max.）
Operating
Temperature
0 ~ 40°C
Storage Temperature
-40°C ~ 60°C
Indicator lamp

Power State, Run State, TALLY Lamp
Power Consumption
18W（Max.）
Dimension
170mm x 228mm x 181mm
Net Weight
2.0Kg
