Selang festo Polyurethane 16mm / PUN-16 Germany 50mtr

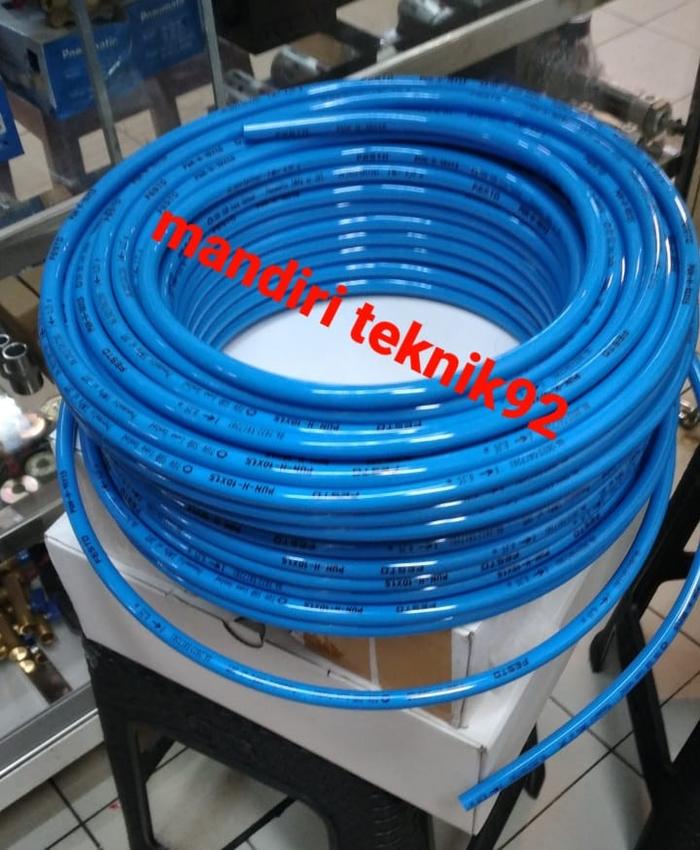

FESTO Plastic Selang Plastik Biru Tubing 16mm Blue PUN PUN-H-16-BL

1roll / 50mtr

Outside diameter
16 mm


Tubing characteristics
Suitable for energy chains in applications with high cycle rates

Pneumatic tubing test conditions
Suitability for energy chains: >5 million cycles as per FN 942021

Temperature-dependent operating pressure
-0.95 bar ... 10 bar

Certification
German Technical Control Board (TV)
Certificate issuing authority
B 013277 0506 00

Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Water as per manufacturer's declaration at www.festo.com
Material fire test
UL94 HB
LABS conformity
VDMA24364-B2-L
For use in the food industry
See supplementary material information

Ambient temperature
-35 C ... 60 C
Product weight by length
0.0729 kg/m
Pneumatic connection
For plug connection outside diameter 12 mm

Shore hardness
D 52 +/-3
Note on materials
Free of copper and PTFE
RoHS-compliant

Material of pneumatic tubing
TPE-U(PU)
