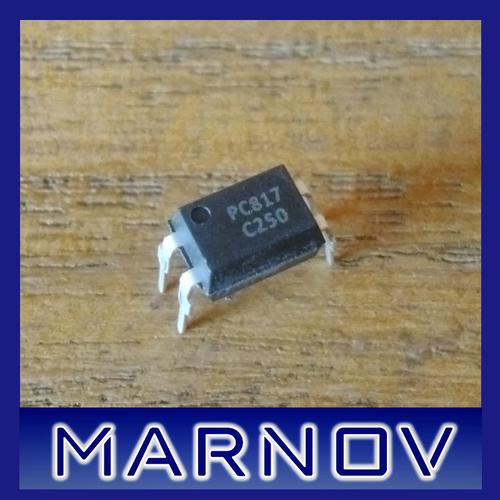

PC817 817 PC817C DIP Optocoupler Photocoupler 4 Pin
Rp400
Pilih jumlah: 2 jumlah
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: IC dan Chip
Selama tampil maka barang ready. Tidak menerima dropshipping.
Detail spesifikasi produk:
Application
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different potentials and impedances
Features
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Soldering)
3. High collector-emitter voltage (VCEO:80V)
4. Current transfer ratio (CTR : MIN. 50% at IF=5 mA,VCE=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output(Viso(rms) : 5.0 kV)
7. Lead-free and RoHS directive compliant
Detail spesifikasi produk:
Application
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different potentials and impedances
Features
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Soldering)
3. High collector-emitter voltage (VCEO:80V)
4. Current transfer ratio (CTR : MIN. 50% at IF=5 mA,VCE=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output(Viso(rms) : 5.0 kV)
7. Lead-free and RoHS directive compliant
