Kit DIY Irigasi Otomatis, Sensor Kelembapan Tanah Kapasitif, Modul Relai 1 Saluran 5V, Pompa Air, Tabung Vinil UNTUK Arduino

Automatic Irrigation DIY Kit, Capacitive Soil Moisture Sensor, 1 Channel 5V Relay Module, Water Pump, Vinyl Tubing for Arduino

Kit DIY Irigasi Otomatis, Sensor Kelembapan Tanah Kapasitif, Modul Relai 1 Saluran 5V, Pompa Air, Tabung Vinil UNTUK Arduino

Deskripsi :

Model Number : Automatic Irrigation DIY Kit
Material : for Arduino
Origin : Mainland China
Type : Watering Kits


Capacitive Soil Moisture Sensor:

Operating voltage: 3.3 ~ 5.5 VDC

Output voltage: 0 ~ 3.0 VDC

Interface: PH2.54-3P

Size: 98 x 23mm (LxW)

Pin: Analog signal output, GND, VCC

1 Channel 5V Relay Module:

Supply Voltage: 5V

Quiescent Current: 4mA

Working Current: 65mA

Trigger Voltage: 0-2V

Trigger Current: 2mA

VCC: positive power supply

GND: negative power supply

IN: can be high or low level control relay

NO: normally open relay interface

COM: Common Interface Relays

NC: normally closed relay interface

Mini Water Pump:

DC Voltage: 3-5 V

Outside diameter of water outlet: 0.29"/7.5mm

Inside diameter of water outlet: 0.17"/4.5mm

Water inlet diameter: 0.19"/5mm

Driving mode: brushless dc design, magnetic driving

Vinyl Tubing:

Material: PVC

I.D. Size: 0.22"/5.54mm

O.D. Size: 0.32"/8.20mm

Length: 39.37inch/100cm

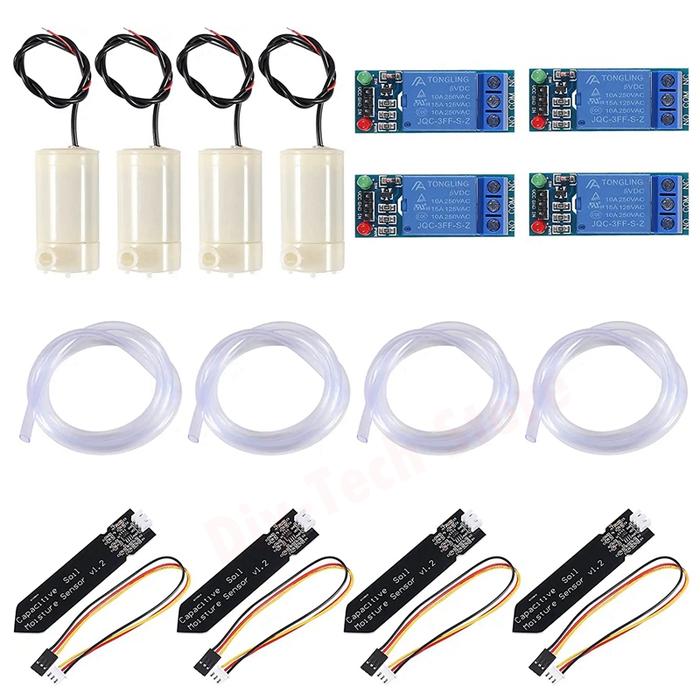

Package Included:

4 x Capacitive Soil Moisture Sensor

4 x 1 Channel 5V Relay Module

4 x Mini Water Pump

4 x 1M Vinyl Tubing

(Arduino Uno is not included)
