POE SWITCH HIKVISION 8 PORT DS-3E0310P-E/M UNMANAGED POE SWITCH

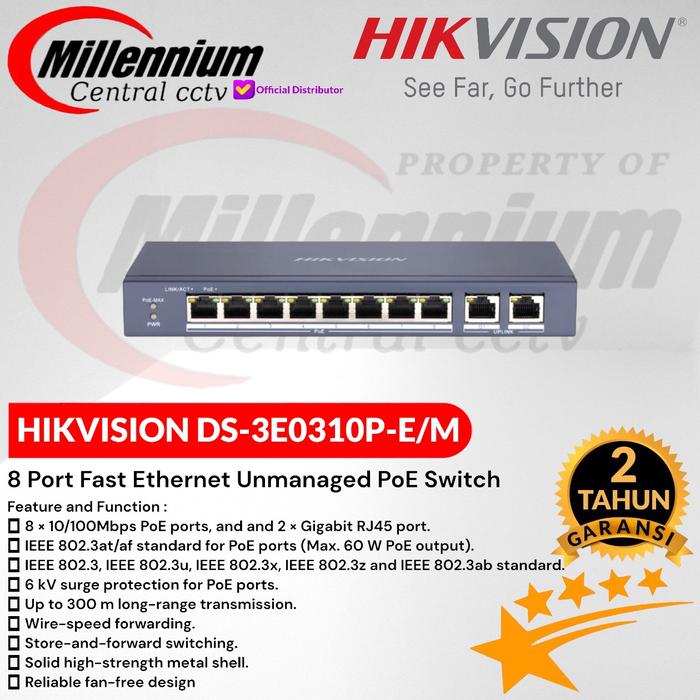

HIKVISION DS-3E0310P-E/M 8-Port Unmanaged PoE Switch
DS-3E0310P-E/M switches are layer 2 unmanaged PoE
switches, providing advanced PoE power supply
technology on the basis of high-performance access to
ensure stable data upload. The switches support long
range function.

Key Feature
• 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
• IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

Specification
Model DS-3E0310P-E/M
Network
parameters
Port number 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode Store-and-forward switching
Working mode Standard mode (default), Extend mode
Ports for long-distance
transmission
Ports 1 to 8
MAC address table 16 K
Switching capacity 5.6 Gbps
Packet forwarding rate 4.1664 Mpps
Internal cache 4 Mbits
PoE power
supply
PoE standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power
supply simultaneously.
PoE port Ports 1 to 8
Max. port power Ports 1 to 8: 30 W
PoE power budget 60 W
Dialing function Long range Ports 1 to 8: up to 300 m.
General
Shell Metal material, fan-free design
