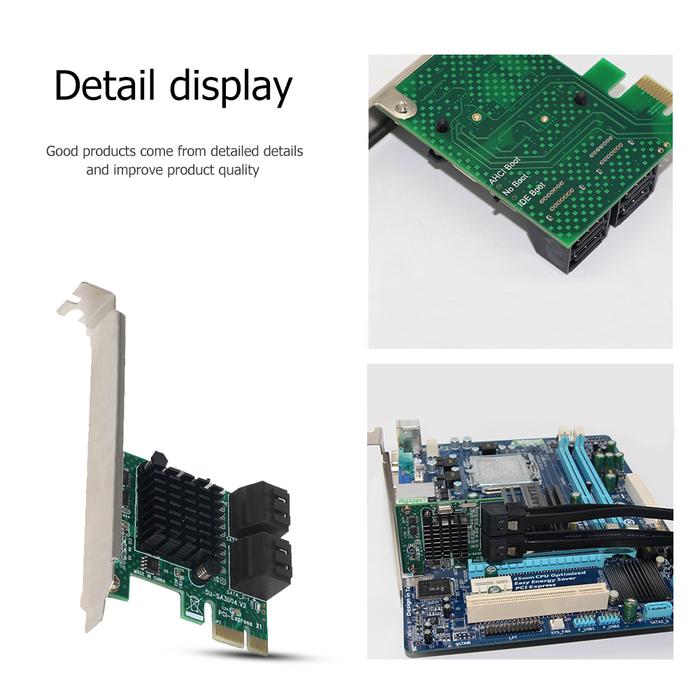

PCI Express 1X to SATA3.0 4 Port Riser PCI-E X1/X4/X8/X16 Expansion Adapter Card 6Gbps for Windows Desktop Computer Extender

Brand Name : snowman
Model Number : PCIE SATA 4 Port
Type : Add On Cards
Origin : Mainland China
Certification : None
Interface Type : PCI Express
Package : Yes
Hign-concerned Chemical : None


PCI Express 1X to SATA3.0 4 Port Riser PCI-E X1/X4/X8/X16 Expansion Adapter Card 6Gbps for Windows Desktop Computer Extender

Feature:

Add large radiator, heat dissipation effect is better

Rear four mouth design, wiring is more convenient.

Rear four-port design, the size of the chassis universal

Tail flush design, the probability of blocking the best video card fan is less

Four layers of circuit board, with isolation layer in the middle, stronger anti-interference ability

Original mode selection,AHCL,IDE, data disk, three modes can be freely selected

The three modes can be selected by pulling the switch

1. Hard disks boot the system in AHQ mode

2. Data disk mode Hard disk does not boot (at the same time, you can close the self-check interface)

3. Hard disk boots the system in IDE mode

Specification:

Transmission rate: 6Gbps

Bus type: PCI-E X1 is compatible with PCI-EX4 X8 X16 and other interfaces

Bus speed: PCI-E3.0

Interface: standard SATA3.0

Number of ports: 6

Installation conditions: There must be one or more free PCI-E slots on the motherboard

Operating temperature: -10~60 degrees

Storage temperature: -20 C to -40 C

Application: Desktop computer, workstation, server, industrial equipment

Driver support: for Windows

Size: 120*65*18mm/4.7X2.6X0.7in

Weight: 60g

Packing size: 145*125*25mm/5.7x4.9x0.98in

Packing weight: 102g

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x PCI-E SATA Adapter

1 x Drive Disc

1 x Half-Height Baffle

2 x Screw
