Mini Modul Bluetooth HIFI Stereo Audio Receiver Module Board Micro USB

Sebelum bertransaksi mohon dibaca Catatan Toko sebagai kesepakatan jual beli di Toko ini.

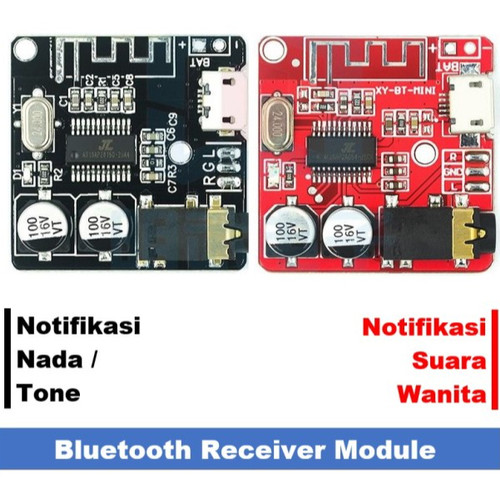

Varian :
1, Black - Board warna hitam dan suara notifikasi koneksi berupa nada / tone
2. Red - Board warna merah dan suara notifikasi koneksi berupa suara wanita

Parameter characteristics

Power Supply 3.7-5V
SNR 90dB
THD+N -70dB
Crosstalk -86dB
DNR 91dB
Support Profile A2DP/AVCTP/AVDTP/AVRCP/HFP
LOS >15m


Interface details

USB powered Universal Micro USB 5V power supply
3.7-5V Supply Pad External 3.7-5V lithium battery power conversion
LED indicator Bluetooth mode long blue light
3.5mm stereo audio interface Standard 3.5mm interface, can connect directly to headphone or to Amplifier.

Note : If using battery, Micro USB not for charging the battery, choose one option the power supply.
