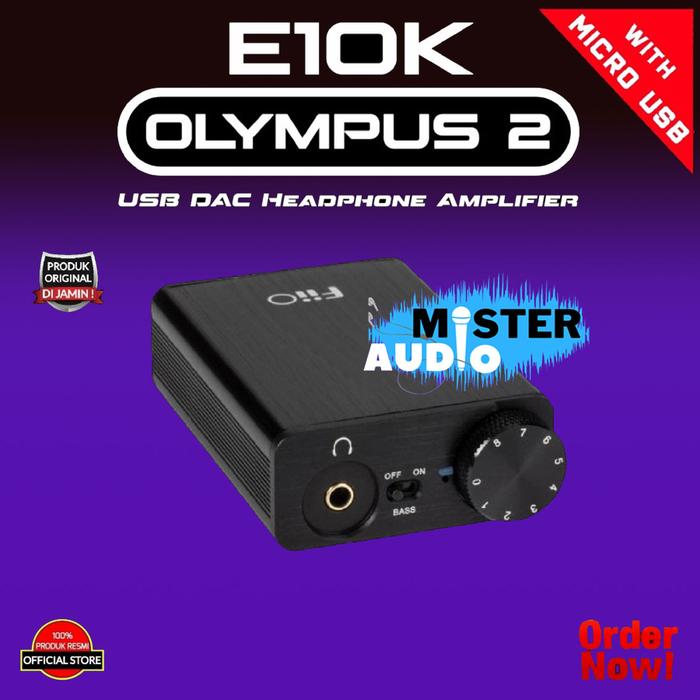

FiiO E10K (OLYMPUS2) USB DAC Headphone Amplifier Original - E10K MICRO USB

FiiO E10K (OLYMPUS2) USB DAC Headphone Amplifier 100% PRODUK RESMI 100% PRODUK ORIGINAL GARANSI RESMI 1 TAHUN FEATURES ◉ Volume potentiometer with barrier-free design for easy operation ◉ Switchable built-in 3dB bass boosting circuit; superior to software EQ effect ◉ USB digital audio convert to coaxial digital audio output ◉ Fixed volume full-scale line level output for maximum signal quality ◉ Automatic support by modern OS without drivers. Maximum audio format: 96Khz/24Bit SPECIFICATIONS •Model Name : E10K Olympus 2 •Color Available: Black •Weight: 78 g •Dimensions: 49.1 mm×80 mm×21 mm •Audio Input: Micro USB •Headphone output : 3.5 mm stereo Jack •Volume Control : ALPS Potentiometer •Bass Boost : YES •Drive ability: 16~150 Ω •Power input: recommend DC5V 500mA •Battery Capacity: N/A •Battery Life : N/A •Output Power : 200 mW (32 Ω/THD+N＜1%) •Charging Time: N/A •THD: ＜0.006% (1 kHz) •Output Impedance : ＜1.04 Ω •Frequency Response: 20 Hz~20 kHz •SNR: ＞105 dB (A-weighted） •Input Sensitivity: N/A •MAX input Level: N/A •Crosstalk: ≥70 dB (1 kHz) •Channel imbalance : ＜0.4 dB •Gain: 1.6 dB (GAIN=L) 8.8 dB (GAIN=H) •Bass Boost Range: N/A •MAX output voltage: 7.39 Vp-p •MAX output current : 81.6 mA
