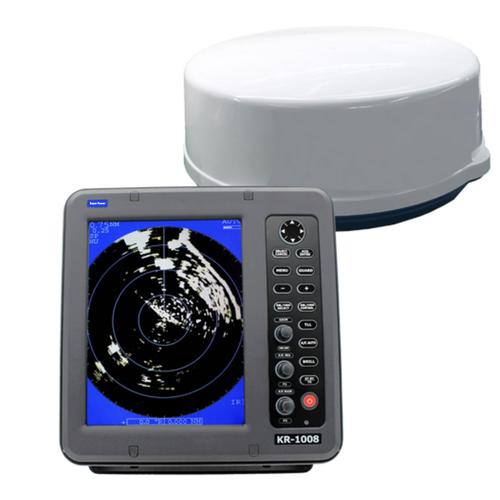

Marine Radar with AISㅤㅤㅤㅤ

Antenna Radiator - Minimum diameter/length and rotation speed: Radome 55 cm; 24 RPM - Wind load: Relative wind 100 knots - Beamwidth: Horizontal: 4°; Vertical: 25° - RF Transceiver - Frequency: 9410 ± 30MHz (X-band) - Pulselength PRR: 0.08 μ s/2100 Hz (0.125, 0.25, 0.5, 0.75, 1, 1.5 nm) 0.3 μ s/1200 Hz(1.5, 2, 3 nm) 0.8 μ s/600 Hz (3, 4, 6, 8, 12, 24,36 nm) - Peak Output Power: 4KW nominal - Mixer and Local Oscillator: Microwave Integrated Circuit - IF: 60MHz; Bandwidth: 25MHz (0.08/0.3 μ s), 3MHz (0.8μ s) - Display unit Minimum 9.7″ LCD Display - Display Modes: Head-up, Course-up*, North-up*, True Motion** * Heading input required ** Heading and speed inputs required 1 unit Rp 48.500.000 Rp 48.500.000 - Range Scale (nm): Range: 0.125, 0.25, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36 Ring: 0.0625, 0.125, 0.125, 0.25, 0.25, 0.5, 0.5, 1, 1, 2, 2, 3, 4, 6, 12 - Echo Trail: Interval: 15s, 30s, 1min, 3mins, 6mins, 15mins, 30mins or continuous - Interface: NMEA 0183 - AIS Display: Acquisition: AIS vessels or ATON - Tracking: Auto - Display: Vessel Name, MMSI, Call sign, Range/Bearing, L/L Speed/Course, ROT, CPA/TCPA (AIS data input required) - Target Tracking Function: - Acquisition: 20 manual or 10 auto + 10 manual - Tracking: Auto - Display: Speed, Course, Range/Bearing, and CPA/TCPA
