Hobbywing Quicrun 1060 Brushed ESC Waterproof 60A Speed Controller RC

Hobbywing Quickrun 1060 Waterproof Brushed Electronic Speed Controller (ESC) 60A

Kegunaan :
Electronic speed controller

Kelebihan :
- Waterproof & dust-proof
- Small size, bisa diaplikasikan untuk various rc cars
- Built in capacitor

Feature :
- Running mode Fwd/Rev/Br
 Fwd =Forward
 Br=Brake
 Rev=Reverse.
- Built-in BEC output capacity
- Automatic throttle range calibration
- Low voltage cut-off protection for battery
- Over-heat protection
- Throttle signal loss protection.

Specifications:
- Model: 1060-BRUSHED
- Fwd. Cont. / Peak Current: 60A /360A
- Rev. Cont. / Peak Current: 30A /180A
- Voltage Range: 2-3S Lipo or 5-9 NiMH
- Resistance: Fwd 0.001Ω, Rev 0.002Ω
- BEC Output: 2A/5V (Linear Mode)
- PWM Frequency: 1KHz
- Dimension / Weight: 36.5*32*18 / 39g

Motor Limit:

2S Lipo or 6 NiMH : 540 or 550 Size Motor: ≥12T Or RPM

3S Lipo or 9 NiMH : 540 or 550 Size Motor: ≥18T Or RPM< 20000  7.2V

Aplikasi RC 1/10 :
- Rock crawler
- Buggy
- Touring Rally
- Truck

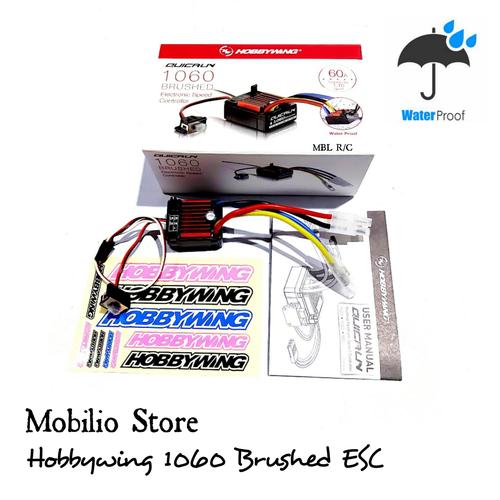

Package :
- 1 pcs ESC HW 1060
- 1 pcs manual book
- 1 pcs sticker Hobbywing
- 1 set compliment : tape, cable ties
- 1 pcs original box

Produk terbaik bagi R/C builder yang suka berinovasi dan tantangan baru.

CATATAN :
*) PRODUK DIKIRIM TERSEGEL ORI DAN UTUH DARI PABRIK, WAJIB VIDEO UNBOXING SAMPAI PENGETESAN !
*) TANPA VIDEO UNBOXING, KOMPLAIN TIDAK DITERIMA DENGAN ALASAN APAPUN !
*) KAMI TIDAK BERTANGGUNG JAWAB ATAS KERUSAKAN AKIBAT KESALAHAN APLIKASI DAN INSTALASI.
