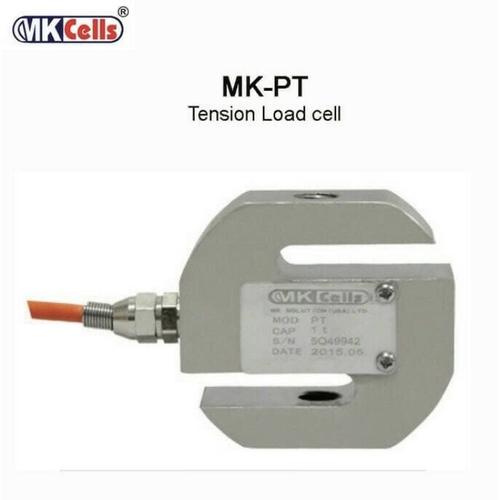

MK-CELLS MK PT Tension Load Cell 10 ton

Deskripsi MK-CELLS MK PT Tension Load Cell 10 ton


Merk : MK CELLS
Type : MK PT Tension Load Cell
Capacity : 10ton
Warranty : 2 Years

FEATURE :
- High precision, reliability and super stability
- Design of metal welded stainless steel
- Easy to installation, good interchangeability
- Constructed of excellent capability in anti erosion, moisture proof
- 5 core high quality orange cable
- Suitable in crane, hopper scales, and other special weighing instruments

SPECIFICATION :
- Rated capacities (Emax) : 20, 30, 50, 75, 100, 150, 200, 250, 300, 500, 700, 1000kg,
1.2,1.5, 2, 2.5, 3, 5, 7.5, 10ton
- Rated Output : 2.00.003mV/V (20kg-7.5ton); 1.80.002mV/V (10ton)
- Accuracy class : C3
- Total error : 0.05%F.S
- Zero balance : 1%F.S
- TC ZERO : 0.02%F.S/10C
- TC SPAN : 0.02%F.S/10C
- Input resistance : 40020 (200-300kg, 1.2-10ton)
- Output resistance : 3523
- Insulation resistance : 5000M
- Temperature, compensated : -10C-+40C
- Temperature, operating : -30C-+70C
- Maximum safe overload : 120%F.S
- Ultimate overload : 200%F.S
- Excitation, recommended : 10-12V DC
- Excitation, maximum : 15V DC
- Protection class : IP65 (20-100kg); IP68 (1.2-10ton)
- Construction : Nickel Plated Steel
- Cable Lenght : 2.6m (20-1000kg), 3m (1.2-10ton)
- Diameter : 5mm (20-1000kg); 6mm (1.2-7.5ton)
