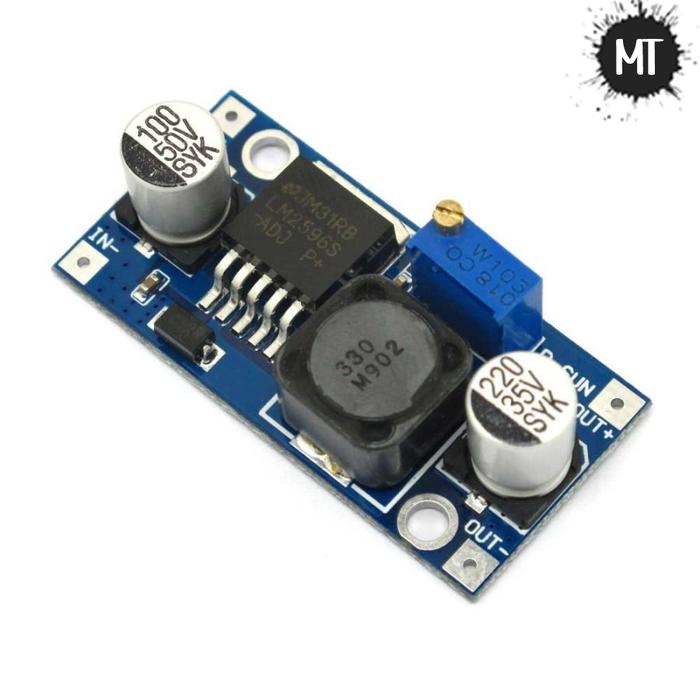

MODULE STEP DOWN LM2596 - Type A

MODULE STEP DOWN LM2596 terdapat beberapa varian :

1. Type A LM2596 ADJUSTABLE DC TO DC STEP DOWN
Ukuran: 42x20x14 mm
Input: DC 3V s/d 40V
Tegangan input harus lebih besar dari tegangan output dengan selisih minimum 1.5V
Output: Bisa distel dari DC 1.5V s/d 35V
Arus: Max 3A (3000mA)

2. Type B Power supply DC-DC LM 2596 buck regulator LM2576 (509)
-Input: DC 4V hingga 40V (Tegangan input harus 1,5V lebih tinggi dari tegangan output.)
-Output: Tegangan DC 1.5V hingga 35V terus menerus disesuaikan, dan arus keluaran maksimum adalah 3A.

3. Type C Step Down Converter Power Supply LM 2596HV AC/DC G4001
Input voltage range: AC 5V-30V, DC 5V-50V
Output output range: DC 3.3V-33V
Output current range: up to 2.2A (the regulator chip can withstand a maximum current of 3A, can work at 3A output current for a short time

4. Type D Step Down Power supply Mini 360 DC to DC LM 2596 (D4000)
Type: Step Down/Buck Regulator
Tegangan Input: 4.75-23v DC
Tegangan Output: 1-17v DC
Arus Input: max 2.3A
Arus Output : max 3A (Continuous 1.8A)
Max Power Output: 15 W

5. Type E Adjustable step-down LM 2596 input 4.5-30V output 1.25-26V (2098)
Input voltage range: 5V-60V
Output voltage range: 1.25V-26V
Maximum output current: 3A
Continuous current: 1.2A (less total power output 20W)

6. Type F Step down Power Adjustable Regulator module 3A LM 2596 (D3100)
Input voltage :7V~28V
Output voltage :5V
Output current :3A (max)
Size :22mm * 17mm * 4mm

7. Type G Step down Lm 2596 dan Voltmeter (D 4002)
Tegangan Input 4.0 ~ 40V. (Tegangan Input harus lebih tinggi dari tegangan output 1.5v atau lebih)
Output disesuaikan rentang tegangan 1.25V ~ 37V
Output saat ini 3A

8. Type H Step down Power module 3A LM 2596 MP1584EN (D3099)
Input voltage :7V~28V
Output voltage :5V
Output current :3A (max)

9. Type I Step down LM 2596 HV mobile phone charging board (8125)
Input voltage: 7-56V limit 56V, try to leave some margin
Output Voltage: Fixed 5V
Output current: maximum 3A, best within 2.5A for long-term
