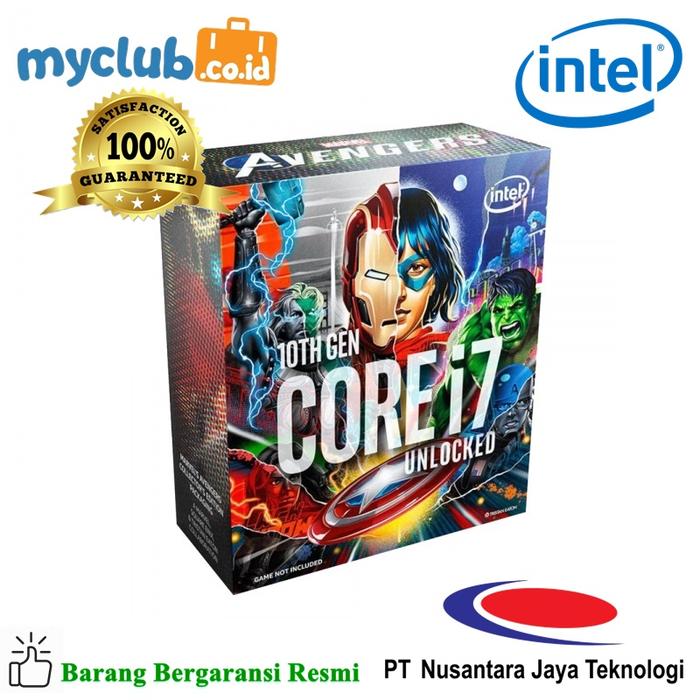

Intel Processor CORE i7-10700KA

Product Collection 10th Generation Intel® Core™ i7 Processors
Code Name Products formerly Comet Lake
Vertical Segment Desktop
Processor Number i7-10700K
Status Launched
Launch Date Q2'20
Lithography 14 nm
Use Conditions PC/Client/Tablet

CPU Specifications

# of Cores 8
# of Threads 16
Processor Base Frequency 3.80 GHz
Max Turbo Frequency 5.10 GHz
Cache 16 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.10 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ 5.00 GHz
TDP 125 W
Configurable TDP-down Frequency 3.50 GHz
Configurable TDP-down 95 W
Supplemental Information

Embedded Options Available No
Datasheet View now
Memory Specifications

Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2933
Max # of Memory Channels 2
Max Memory Bandwidth 45.8 GB/s
ECC Memory Supported ‡ No
Processor Graphics

Processor Graphics ‡ Intel® UHD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI)‡ 4096 x 2160@30Hz
Max Resolution (DP)‡ 4096 x 2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096 x 2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x9BC5
