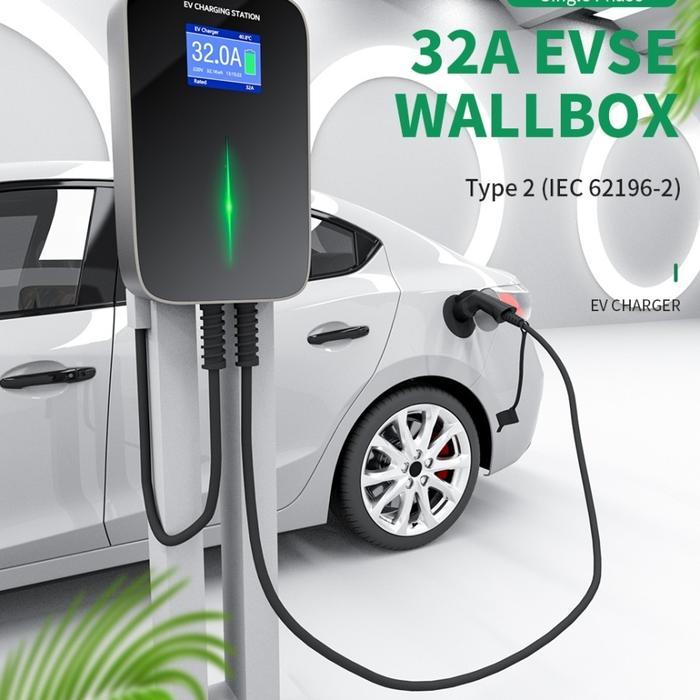

Besen Fast Charging Type2 Mobil Wuling Air Ev 22Kw 32A 3-Phasa With 6M - 22kW 3Phase
Rp14.786.000
Pilih type: 22kW 3Phase
SEMUA PRODUK KAMI PO / PRE ORDER 7 - 10 HARI, JIKA BERMINAT SILAHKAN TANYAKAN TERLEBIH DAHULU SEBELUM MEMBELI :) Garansi 1 Tahun
EV Charging Station (APP) -Max 22kW- 20 feet cable with SAE J1772 / IEC 62196-2 Plug
This is an APP wall-mounted charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. To operate RIFD function, it has a card writer and management program.
Model Name : BS20-APP
Max OutputPower : 22kW(3 Phase)
Max Output Current : 32A
RCD Type A+6mA DC
APP Function
Ingress Protection : IP66
Impact Protection : IK10
Input & Output
Input voltage/Output voltage : AC 230V/400V
Input frequency : 47~63Hz
Max. output power : 22kW(3 Phase)
Max. output current : 32A
Charging interface type : IEC 62196-2, SAE J1772
Protection
Over voltage protection
Under voltage protection
Overload protection
Short circuit protection
Earth leakage protection
Over-temp protection
Lightning protection
Function
Ethernet/WIFI/4G/Bluetooth : Optional
LCD : 3.5-inch color display
RCD : Type A / Type A+6mA DC
LED Indicator light :
Power adjustment : Optional
RFID : NO
Working environment
Protection degree :IP66
Environment temperature :-40℃ ~ +75℃
Relative humidity : 0-95% non-condensing
Maximum altitude :
Cooling :Natural air cooling
Standby power consumpiton :
Mechnical
Dimension (W/H/D) : 295/195/65mm
Weight : 6KG~8KG
Mounting Accessories
Wall-mounting bracket :
Ground-mountin : Optional
Sertificate : CE, FCC, CSA, RoHS
EV Charging Station (APP) -Max 22kW- 20 feet cable with SAE J1772 / IEC 62196-2 Plug
This is an APP wall-mounted charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. To operate RIFD function, it has a card writer and management program.
Model Name : BS20-APP
Max OutputPower : 22kW(3 Phase)
Max Output Current : 32A
RCD Type A+6mA DC
APP Function
Ingress Protection : IP66
Impact Protection : IK10
Input & Output
Input voltage/Output voltage : AC 230V/400V
Input frequency : 47~63Hz
Max. output power : 22kW(3 Phase)
Max. output current : 32A
Charging interface type : IEC 62196-2, SAE J1772
Protection
Over voltage protection
Under voltage protection
Overload protection
Short circuit protection
Earth leakage protection
Over-temp protection
Lightning protection
Function
Ethernet/WIFI/4G/Bluetooth : Optional
LCD : 3.5-inch color display
RCD : Type A / Type A+6mA DC
LED Indicator light :
Power adjustment : Optional
RFID : NO
Working environment
Protection degree :IP66
Environment temperature :-40℃ ~ +75℃
Relative humidity : 0-95% non-condensing
Maximum altitude :
Cooling :Natural air cooling
Standby power consumpiton :
Mechnical
Dimension (W/H/D) : 295/195/65mm
Weight : 6KG~8KG
Mounting Accessories
Wall-mounting bracket :
Ground-mountin : Optional
Sertificate : CE, FCC, CSA, RoHS
