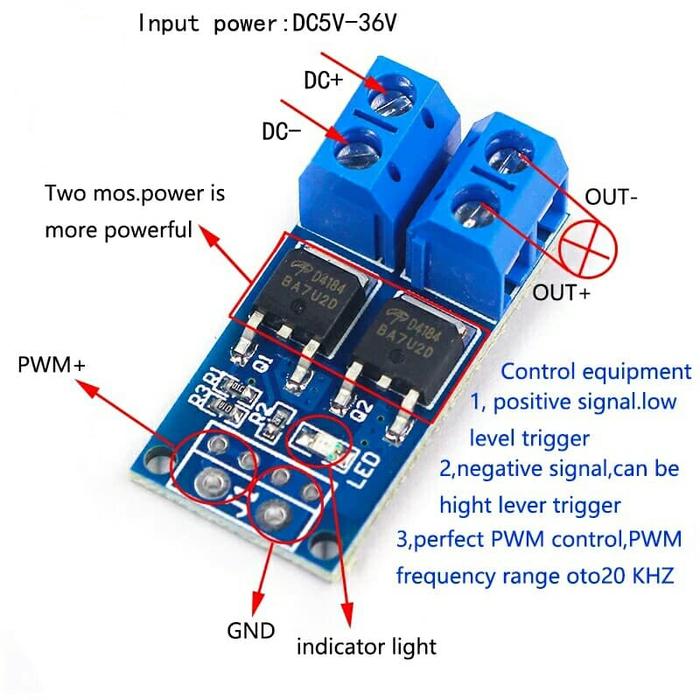

MOS FET Trigger Switch Drive Module PWM Controller 15A 400W
Rp13.500
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Accessories Lainnya
1. The two parallel MOS active output, lower resistance, electric current is bigger, strong power, room temperature 15A, 400W, met the most equipment used;
2. Wide voltage, support PWM;
3. The control of high power equipment.
Product parameters and application:
1: working voltage: DC 5V-36V.
High and low level 2: the trigger signal source: the digital quantity (DC3.3V - 20V), can connect microcontroller IO port, PLC interfaces, dc power supply, etc., can answer the PWM signal, signal frequency 0-20 KHZ perfect support.
3: the output power: DC DC 5V - 36V, room temperature sustained current 15A, power 400W!Auxiliary cooling conditions, the maximum current can be up to 30A.
4: application: output terminal can control high power devices, motors, light bulbs, LED lamp belt, dc motor, micro pump, solenoid valve, etc., can input, PWM control motor speed, the brightness of the lamp, etc.
5: life: unlimited switch;Working temperature: - 40-85°;Size: 3.4 * 1.7 * 1.7cm
2. Wide voltage, support PWM;
3. The control of high power equipment.
Product parameters and application:
1: working voltage: DC 5V-36V.
High and low level 2: the trigger signal source: the digital quantity (DC3.3V - 20V), can connect microcontroller IO port, PLC interfaces, dc power supply, etc., can answer the PWM signal, signal frequency 0-20 KHZ perfect support.
3: the output power: DC DC 5V - 36V, room temperature sustained current 15A, power 400W!Auxiliary cooling conditions, the maximum current can be up to 30A.
4: application: output terminal can control high power devices, motors, light bulbs, LED lamp belt, dc motor, micro pump, solenoid valve, etc., can input, PWM control motor speed, the brightness of the lamp, etc.
5: life: unlimited switch;Working temperature: - 40-85°;Size: 3.4 * 1.7 * 1.7cm
