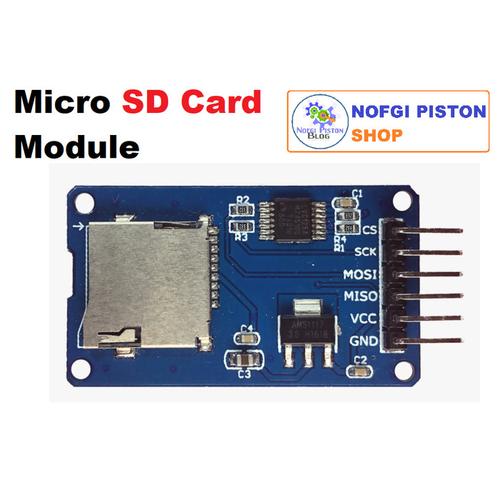

Micro SD Card Module Reader Writer Kartu MicroSD Baca Tulis Data Modul

Module untuk membaca isi dari memori Micro SD, dapat digunakan bersama Arduino atau microconroller lainnya.

Harap membaca catatan toko terlebih dahulu.
GRATIS Ebook Tutorial Arduino dengan menyertakan alamat E-mail di setiap pembelian.
Menerima ORDER PROJECT Elektronika-Robotika.
Kontak WA : == 088217082017 ==, Gratis Konsultasi Asal Sopan :-)
Tutorial Project Elektronika & Robotika : www.nofgipiston.wordpress.com

Nofgi Piston Shop... Murah Meriah dan Terpercaya ...
Selamat berbelanja ... :)

Module untuk kartu memori Micro SD. Dapat digunakan untuk berbagai project yang membutuhkan penyimpanan data besar.
Sangat cocok dikombinasikan dengan board microcontroller seperti Arduino, Raspberry Pi, ARM, dan lain-lain.

Spesifikasi :
The module (MicroSD Card Adapter) is a Micro SD card reader module, through the file system and the SPI interface driver, MCU to complete the file system to read and write MicroSD card.

Module features are as follows:
1. Supports Micro SD cards, Micro SDHC card (high speed card)
2 level conversion circuit board that interfaces level for 5V or 3.3V
3 power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
4 is a standard communication interface SPI interface

Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is SPI bus, CS is the chip select signal pin;
3.3V voltage regulator circuit: LDO regulator output is 3.3V level converter chip, Micro SD card supply;
Level conversion circuit: Micro SD card into the direction of the signal is converted to 3.3V, MicroSD card interfaces to control the direction of the MISO signal is also converted into 3.3V, general AVR microcontroller system can read the signal;
Micro SD card connector: a self-bomb deck, easy card insertion.

Contoh project : http://www.ngarep.net/tutorial-arduino-mengakses-modul-micro-sd/
http://saptaji.com/2015/07/29/membaca-dan-menulis-data-di-sd-card-dengan-arduino/
