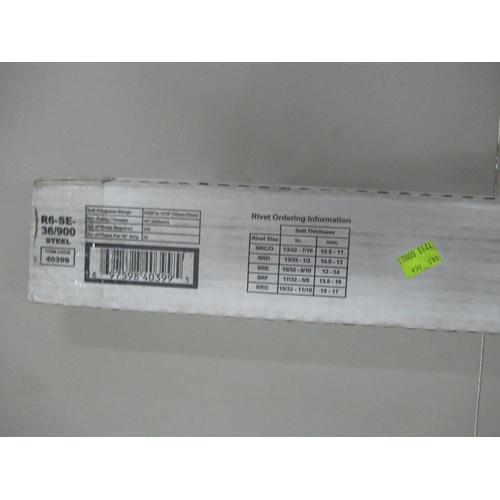

FLEXCO R6-SE-36/900

FLEXCO SIZE R6 FASTENERS Ideal for use in applications up to 800 PIW with R6 RustAlloy and Stainless Steel rivets. FASTENER DETAILS • Design: Staggered five-rivet pattern, Scalloped Edge • Belt Thickness: 13/32” to 11/16” (10.5 mm to 17 mm) • Minimum Pulley Diameter: 18” (450 mm) • Maximum PIW: 800 (140) • Belt Widths: 24”, 30”, 36”, 42”, 46 #34;, 48”, 54”, 60”, 72”, 84” (450 mm, 600 mm, 750 mm, 900 mm, 1350 mm, 1150 mm, 1500 mm, 2130 mm) • Metal Selection: Steel, RustAlloy • Rivet Selection: Individual or collated, steel or stainless steel • Installation Method: Hammer or power tool and applicator tool SPECIFICATIONS R6-SE-36/900 : • use imperial • Belt Thickness (mm) : 10.5-17 • Belt Width (mm) : 900 • Mechanical Fastener Rating (kN/m) : 140 • Mechanical Fastener Rating (P.I.W.) : 800 • Minimum Pulley Diameter (mm) : 450 • Fastener Material : Steel • Package Configuration : Two Fastener Strips (Continuous Strip) • Weight (kg) : 4.67
