Grosir 1pcs Smart Electronics DC-DC SX1308 Step-UP Adjustable Power

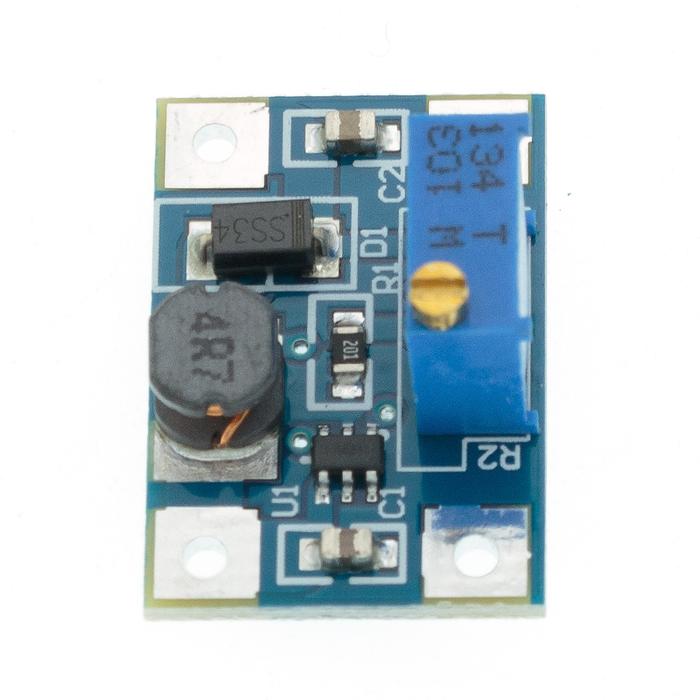

Stay Store Produk is_customized : Yes Model Number : SX1308 Step-UP Adjustable Power Module Operating Temperature : 0 Dissipation Power : 0 Supply Voltage : 0 Application : Computer Condition : New Type : Voltage Regulator Origin : Mainland China Description: SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100m metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc. Features: Oscillation frequency 1.2MHz efficiency is as high as 95% Circuit has short circuit protection, overheating protection function 10k to adjust potentiometer, adjust the output voltage Parameters: Maximum input voltage: DC 2-24V Maximum output voltage: DC 2-28V Switching frequency: 1.2MHz Maximum current output: 2A Note: any questions, turn the potentiometer in one direction more than 10 rotations for try Terima kasih telah berbelanja di tempat kami
