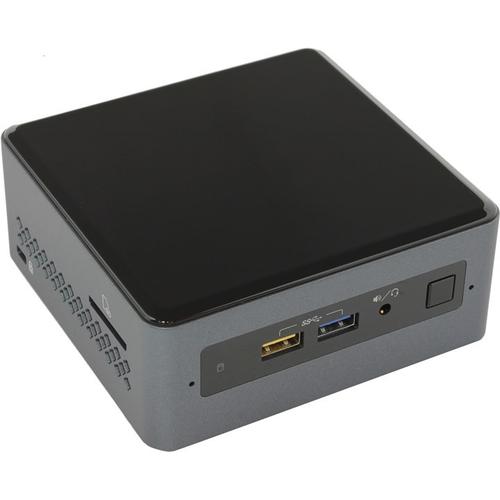

Mini PC KIT Intel NUC (NUC7JY) Intel Celeron Processor Inside Barebone

MINI PC NUC Kit NUC7CJYH Intel Celeron BAREBONE

Warranty 3 Years

Product Collection Intel NUC Kit with Intel Celeron Processors

Code Name Products formerly JUNE CANYON
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC7JYBN
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor 2.5" Drive
# of Internal Drives Supported 1
Lithography 14 nm
TDP 10 W
DC Input Voltage Supported 12-19 VDC
Processor Included Intel Celeron J4005 Processor (4M Cache, up to 2.70 GHz)
Intel vPro Platform Eligibility ‡ No
# of Cores 2
# of Threads 2
Processor Base Frequency 2.00 GHz
Warranty Period 3 yrs
Recommended Customer Price$132.89 - $135.36

Memory & Storage

Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics

Integrated Graphics ‡ Yes
Graphics Output 2x HDMI 2.0a
# of Displays Supported ‡ 2

Expansion Options

Removable Memory Card Slot SDXC with UHS-I support

I/O Specifications

# of USB Ports 6
USB Configuration 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision 2.0, 3.0
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 1
Max # of SATA 6.0 Gb/s Ports 1
Audio (back channel + front channel) 7.1 digital
Integrated LAN Realtek 8111H-CG
Integrated Wireless‡ Intel Wireless-AC 9462 + Bluetooth 5.0
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
Additional Headers CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL

Supplemental Information

Embedded Options Available No
Datasheet View now
Description Other features: Includes SDXC card slot, No audio codec or microphones
