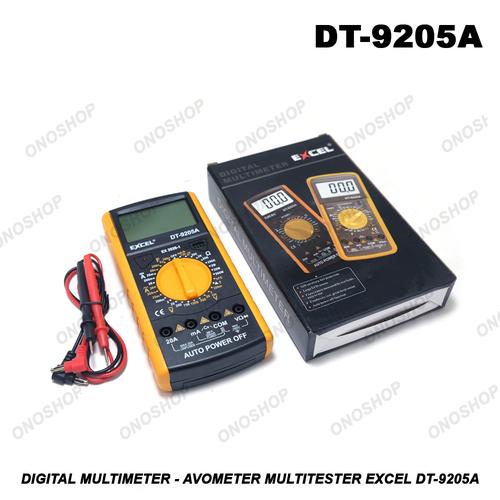

Digital Multimeter - Avometer Multitester Excel DT-9205A
Rp67.500
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Meter Tools ( Alat Ukur )
Digital Multimeter - Avometer Multitester Excel DT-9205A
GENERAL DESCRIPTION
The meter is a handheld 31/2 digital multimeter for measuring DC and AC Voltage、DC and AC current、Resistance、Diode、Transistor、frequencytemperature.capacitance and Continuity Test with battery operated.
- Maximum voltage between terminals and earth ground : 1000VDC or 700VAC
- Fuse protection : F 200mA / 250V
- Power : 9V battery、NEDA 1604 or 6F22
- Display : LCD、1999 counts、updates 2-3 / sec
- Measuring method : Dual-slope integration A / D converter：
- Overrange Indication : Only figure "1" on the display：
- Poladty indication : "-" displayed for negative polarity
- Operating Environment : 0 to 40°C
- Storage temperature : -10 C to 50°C
- Low battery indication : appears on the display
- Size : 91mm X185 mm X 35mm
- Weight : Approx。280g。
Range :
- DC Volatge : 200mV, 2V, 20V, 200V, 1000V
- AC Voltage : 200mV, 2V, 20V, 200V, 750V
- DC Current : 20mA, 200mA, 20A
- AC Current : 20mA, 200mA, 20A
- Resistance : 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ, 20MΩ, 200MΩ
- Capacitance : 20nF, 200nF, 2μF, 200μF
- Buzzer Continuity
- Diode Test
- Transistor Test
GENERAL DESCRIPTION
The meter is a handheld 31/2 digital multimeter for measuring DC and AC Voltage、DC and AC current、Resistance、Diode、Transistor、frequencytemperature.capacitance and Continuity Test with battery operated.
- Maximum voltage between terminals and earth ground : 1000VDC or 700VAC
- Fuse protection : F 200mA / 250V
- Power : 9V battery、NEDA 1604 or 6F22
- Display : LCD、1999 counts、updates 2-3 / sec
- Measuring method : Dual-slope integration A / D converter：
- Overrange Indication : Only figure "1" on the display：
- Poladty indication : "-" displayed for negative polarity
- Operating Environment : 0 to 40°C
- Storage temperature : -10 C to 50°C
- Low battery indication : appears on the display
- Size : 91mm X185 mm X 35mm
- Weight : Approx。280g。
Range :
- DC Volatge : 200mV, 2V, 20V, 200V, 1000V
- AC Voltage : 200mV, 2V, 20V, 200V, 750V
- DC Current : 20mA, 200mA, 20A
- AC Current : 20mA, 200mA, 20A
- Resistance : 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ, 20MΩ, 200MΩ
- Capacitance : 20nF, 200nF, 2μF, 200μF
- Buzzer Continuity
- Diode Test
- Transistor Test
