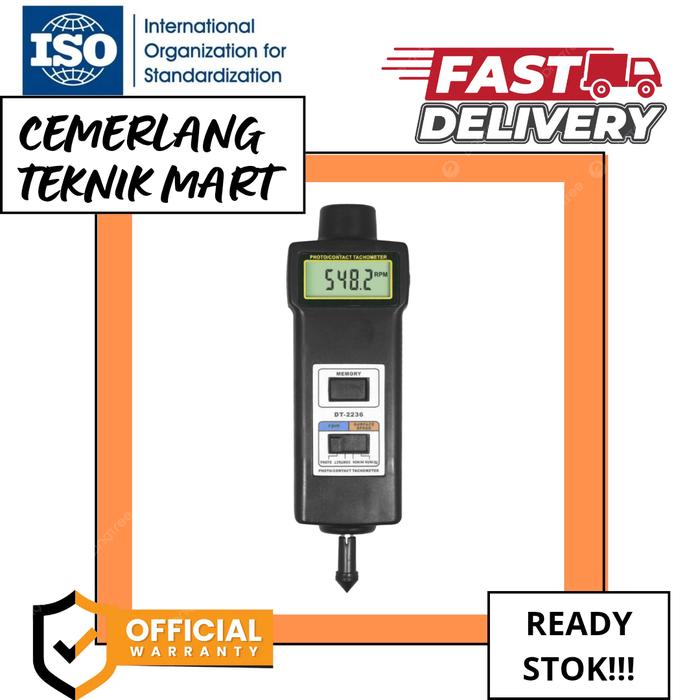

DT2236 Tachometer DT-2236 Digital Revolution Meter Photoelectric/Alat ukur kecepatan /Rpm

Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).

* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.

Measuring Range:
Laser 2.5 ~ 99,999 r / min
Contact 0.5 ~ 19,999 r / min
Surface Speed 0.05 ~ 1999.9 m / min 0.2 ~ 6560 ft / min

Resolution :
Rotative Velocity 0.1 r / min (0.5 ~ 999.9 r / min)
1 r / min (Over 1000 r / min )
Surface Speed
0.01 m / min (0.05 ~ 99.9 m / min)
1 m / min (Over 100 m / min )
Or 0.1 ft / min (0.1 ~ 999.9 ft / min)
1 ft / min (Over 1000 ft / min )

Accuracy ± (0.05% n + 1 d)
Sampling Time 1.0 s (Over 60 r / min )
Test Range Select
Automation
Memory
Max / Min / Last Value
Time Base
Quartz Crystal

Laser Tach Detecting Distance 50 ~ 150 mm / 2 ~ 6 inch (Typical), Max. 300 mm / 12 inch
Power Consumption 90 mA (Testing)
Operating Temperature 0 ~ 50 °C
Power Supply 4 x 1.5 V AA size (UM-3) battery
Dimensions 215 x 65 x 38 mm
Weight 200 g (Including Batteries)
