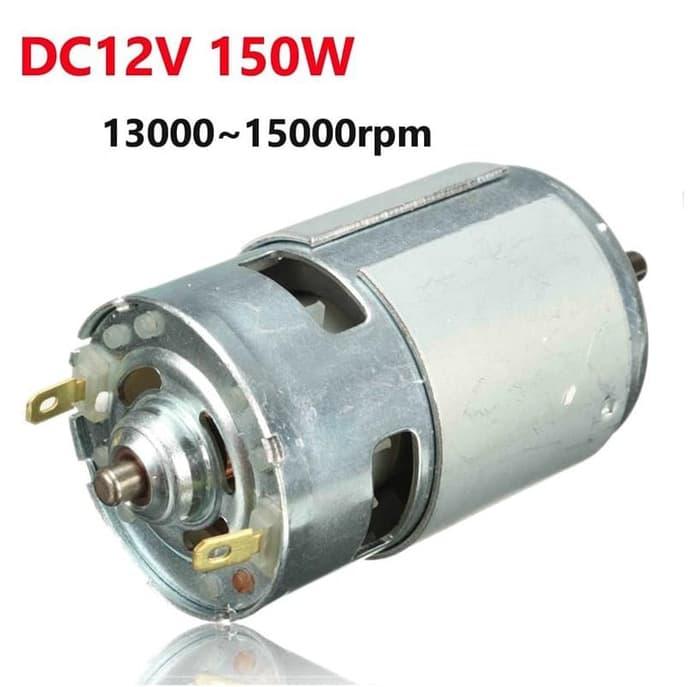

Motor 775 High Speed Large Torque DC Motor DC 12V 150W 13000~15000rpm

Deskripsi Produk
Motor 775 High Speed Large Torque DC Motor DC 12V 150W 13000~15000rpm

Deskripsi Produk
This is the front end of the motor ball bearing, copper sets of back-end, 5 groups winding, at a voltage of 24V, large torque, low noise.
775 DC Motor power Large Torque High Power Low Noise
DC 12V 150W 13000~15000rpm 775 motor High speed Large torque DC motor Electric tool Electric machinery

Keunggulan Motor 775
• RPM tinggi
• Torsi Besar
• Tidak membutuhkan Perawatan
• Low Noise
• Kinerja sangat Stabil
• Arah Putaran bisa kanan dan kiri Reverse
• Multifungsi serta power Full


Specifications
775 DC Motor Front Ball Bearing, Large Torque, High Power, Low Noise
Model : 504483
Motor type : 775
Rated voltage : DC12V-36V
Working voltage : 12V
Idling speed : 13000~15000rpm
Rated current : 0.32A
Rated power : 150W
Size : 98x42mm
Shaft : 5mm 0.20 inch
Shaft length : 17mm 0.70 inch
Body length : 66.7mm 2.63 inch
Front steps diameter : 17.4 mm 0.69 inch
Former high level : 4.7 mm 0.19 inch
Body diameter : 42 mm 1.65 inch
Motor Overall Length : 98 mm 0.86 inch
Diagonal installation pitch : 28.8 mm 1.13 inch
Mounting hole size : M4
Mounting hole : 2
Cooling Fan : Yes

Package include:
1x 775 Motor High Speed Large Torque
